Ipopast
Automatic system for water disinfection through the dosage of calcium hypochlorite. Particularly effective against most bacteria, this product can also be used as an adjuvant in flocculation. The dosage is automatically activated by the control unit that, verifying the values in the pool, activates the opening of a solenoid valve that allows the correct dosage on the delivery line to the pool.

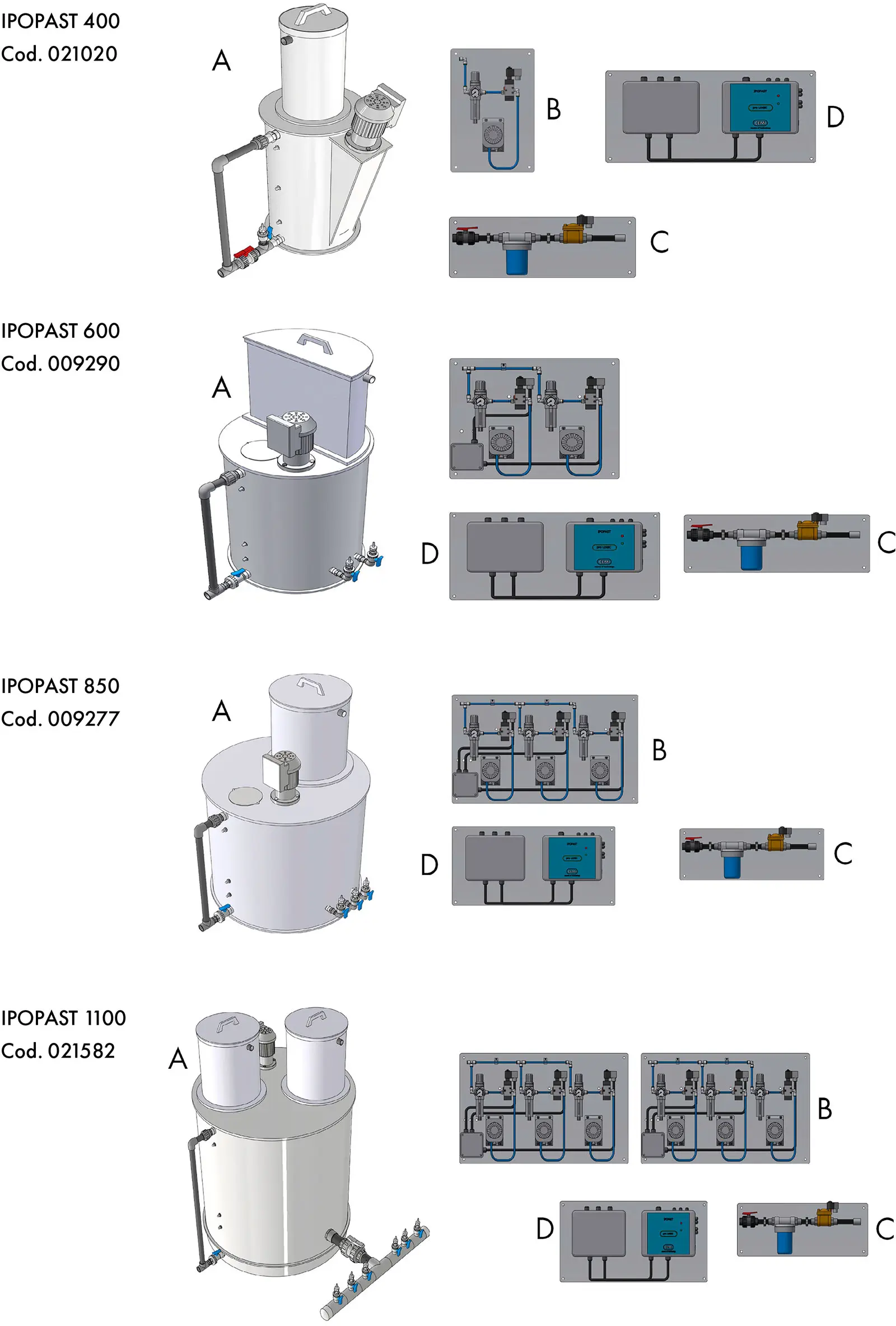

The IPOPAST system is composed of:
A. n. 01 tank
B. n. 01 panel complete with dispensers with pneumatic operation
C. n. 01 panel with filter
D. n. 01 management panel
E. 50 liters compressor (not included)
Power supply: 230VAC - 100W
DIMENSIONING: Through an analytical calculation, the appropriate capacity of the required tank is determined by converting the value (A) into liters (B).
(Pool volume + Compensation tank) x 0.00076 = A (m³) ----> B (liters)
Download the catalog sheet PDF
TECHNICAL DATA
Automatic system for water disinfection through the dosage of calcium hypochlorite.
| Cod. | Pool volume (m³) | Tank Ø | Capacity (lt) | N.dosatori | Dim. concrete containment (LxPxH mm) |
|---|---|---|---|---|---|
| 021020 | fino a 120 | 400 | 90 | 1 | 800x800x1000 |
| 009290 | da 121 a 250 | 600 | 190 | 2 | 1000x1000x1000 |
| 009277 | da 251 a 500 | 850 | 380 | 3 | 1200x1200x1000 |
| 021582 | da 501 a 1150 | 1100 | 870 | 6 | 1600x2000x1000 |
