Square air hydro massage plate for liner
Air blowing plate removable made of mirror polished AISI 316L-V4A stainless steel.
FOR LINER.
Download the catalog sheet PDF
TECHNICAL DATA
Air blowing plate removable made of mirror polished AISI 316L-V4A stainless steel.

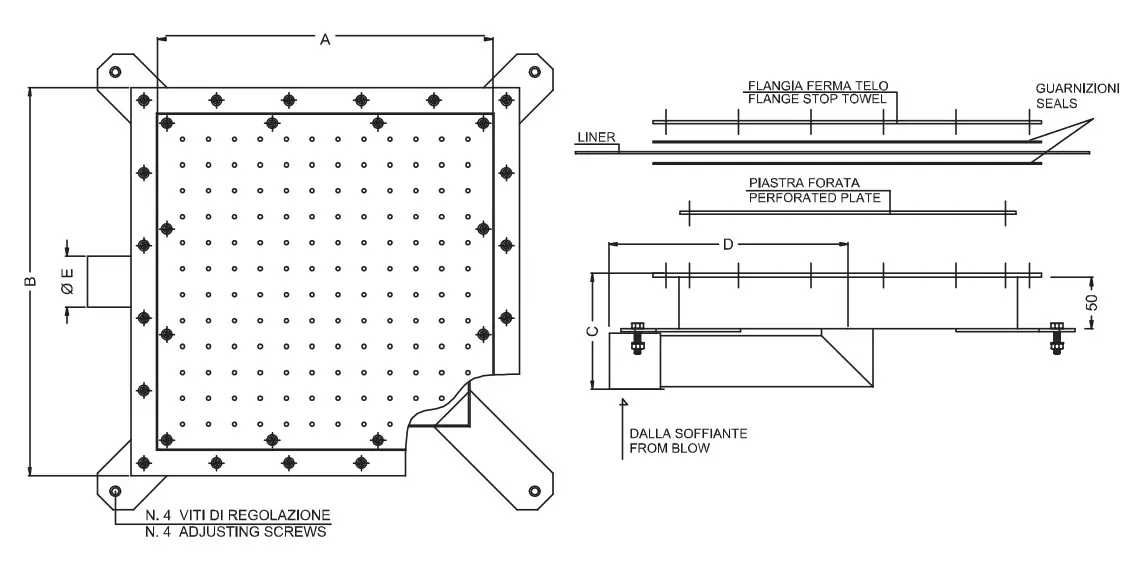

| Cod. | A (mm) | B (mm) | C (mm) | D (mm) | E Ø Connection (mm) | Flow ride (mc/h) |
|---|---|---|---|---|---|---|
| 022376 | 330 | 380 | 100 | 235 | 1” ½ F | 70 |
| 022377 | 500 | 550 | 115 | 320 | 2”F | 95 |
| 022378 | 750 | 800 | 115 | 445 | 2”F | 130 |
Product compliant with the standards UNI EN 13451-1:2016 | UNI EN 13451-3:2016 | UNI 16713-2:2016
