Removable air hydro massage plates for concrete
Air blowing plate removable made of mirror polished AISI 316L-V4A stainless steel.
FOR CONCRETE.
Download the catalog sheet PDF
TECHNICAL DATA
Air blowing plate removable made of mirror polished AISI 316L-V4A stainless steel.

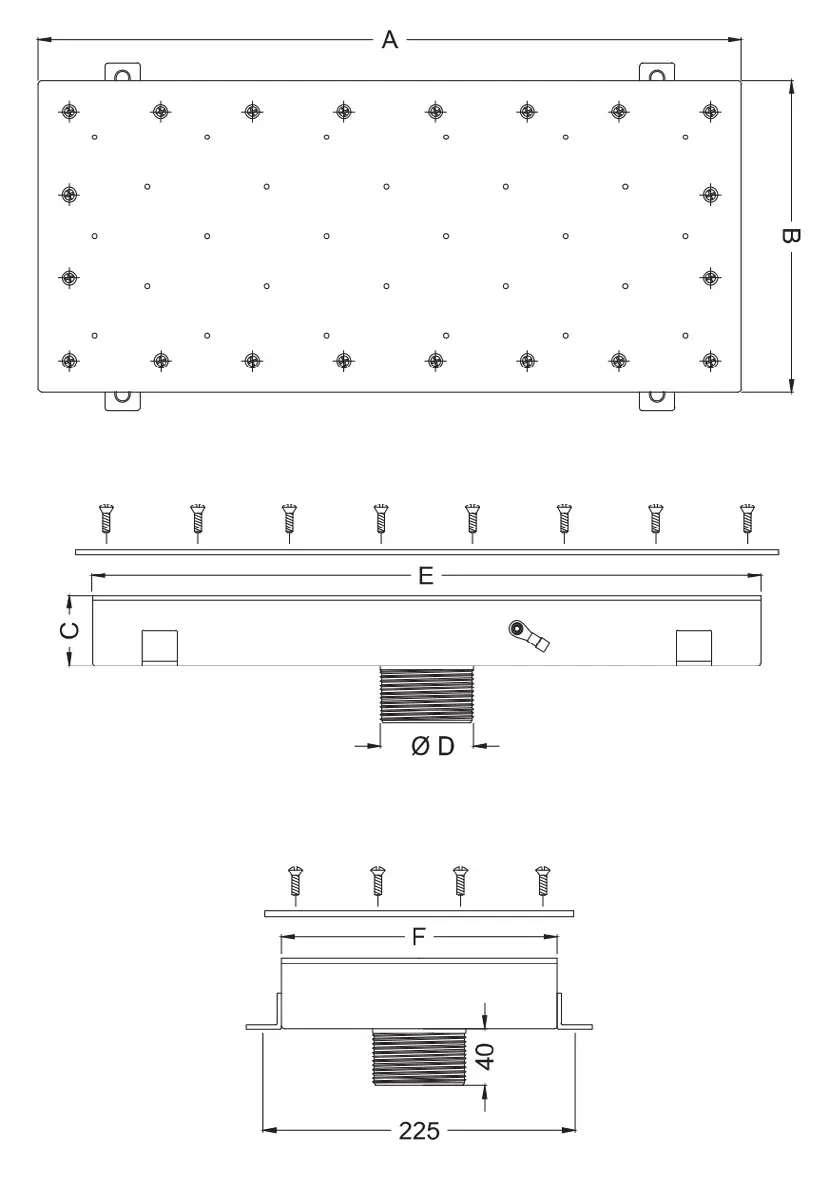

| Cod. | A (mm) | B (mm) | C (mm) | D Ø Connection (mm) | E (mm) | F (mm) | Flow ride (mc/h) |
|---|---|---|---|---|---|---|---|
| 022373 | 500 | 220 | 50 | 2”M | 475 | 195 | 60 |
| 022374 | 750 | 220 | 50 | 2”M | 725 | 195 | 80 |
| 022375 | 1500 | 220 | 50 | 2x1"½ M | 1475 | 195 | 100 |
Product compliant with the standards UNI EN 13451-1:2016 | UNI EN 13451-3:2016 | UNI 16713-2:2016
