Rectangular air hydro massage plates for concrete and liner

Air blowing plate made of mirror polished AISI 316L-V4A stainless steel.

FOR CONCRETE AND LINER.

Catalog sheet PDFDownload the catalog sheet PDF
Rectangular air hydro massage plates for concrete and liner Rectangular air hydro massage plates for concrete and liner

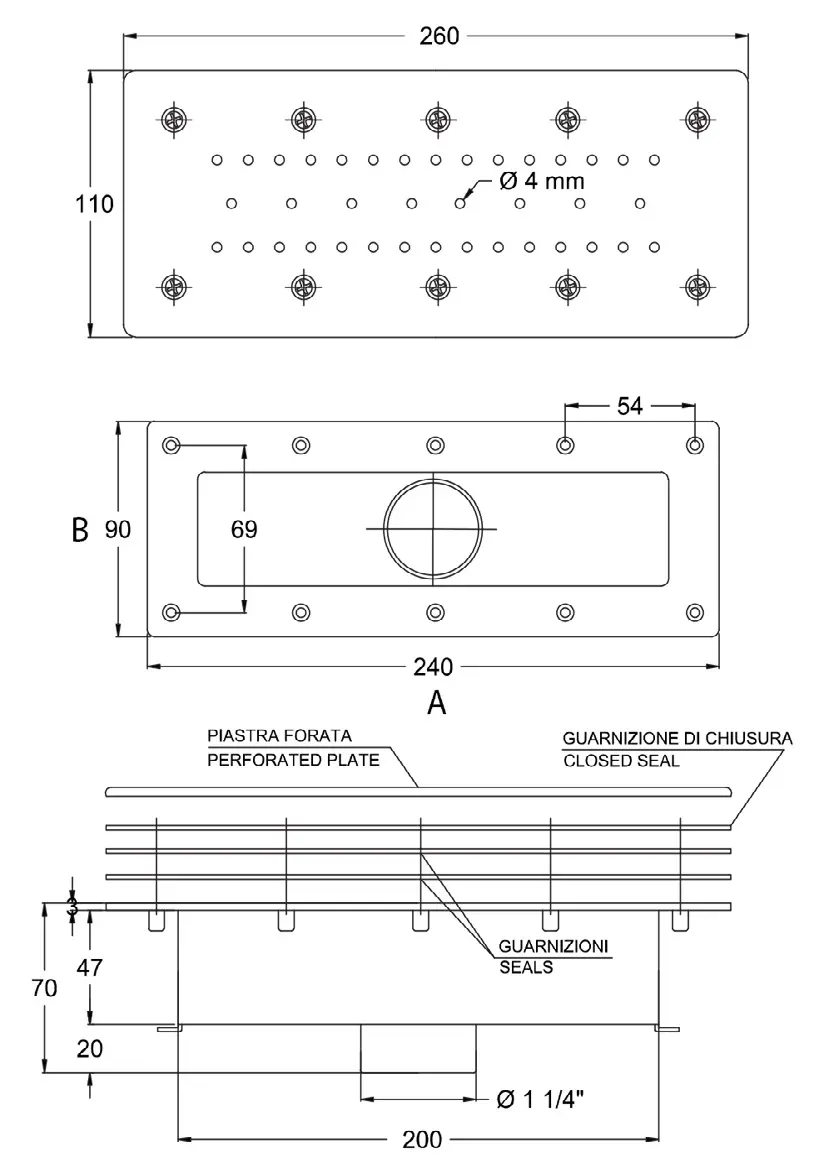

TECHNICAL DATA

Air blowing plate made of mirror polished AISI 316L-V4A stainless steel.

Cod. A (mm) B (mm) Ø Connection (inch) Flow ride (mc/h)
022372 240 90 1 ¼ 15

Product compliant with the standards UNI EN 13451-1:2016 | UNI EN 13451-3:2016 | UNI 16713-2:2016
