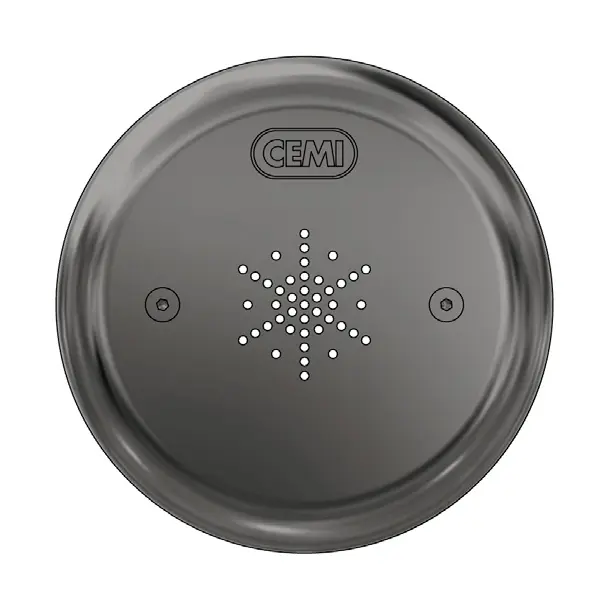

Ait inlet nozzle bottom
Effervescent nozzle for wall/bottom installation for swimming pool reinforced concrete structure or preffabricated with PVC membrane coating or with waterproofing system and ceramic/ mosaic covering.

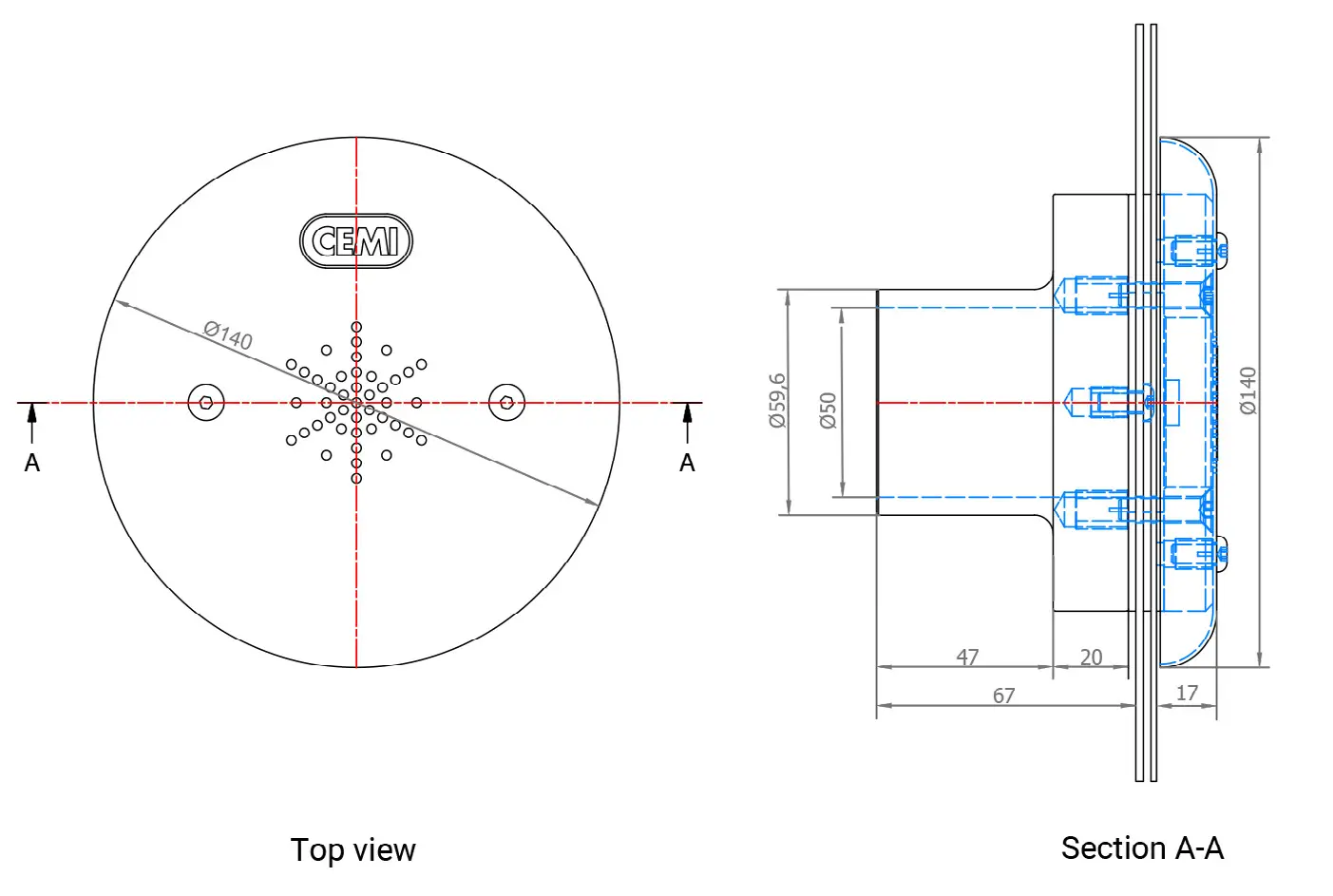

Steel flange external diameter 140 mm.
Download the catalog sheet PDF
TECHNICAL DATA
Effervescent nozzle for wall/bottom installation for swimming pool.
| Cod. | Diameter (mm) | Connection (inch) | Flow ride (mc/h) |
|---|---|---|---|
| 009122 | Ø 140 | 2" | 15 |
Product compliant with the standards UNI EN 13451-1:2016 | UNI EN 13451-3:2016 | UNI 16713-2:2016
