Effervescent beds_PVC

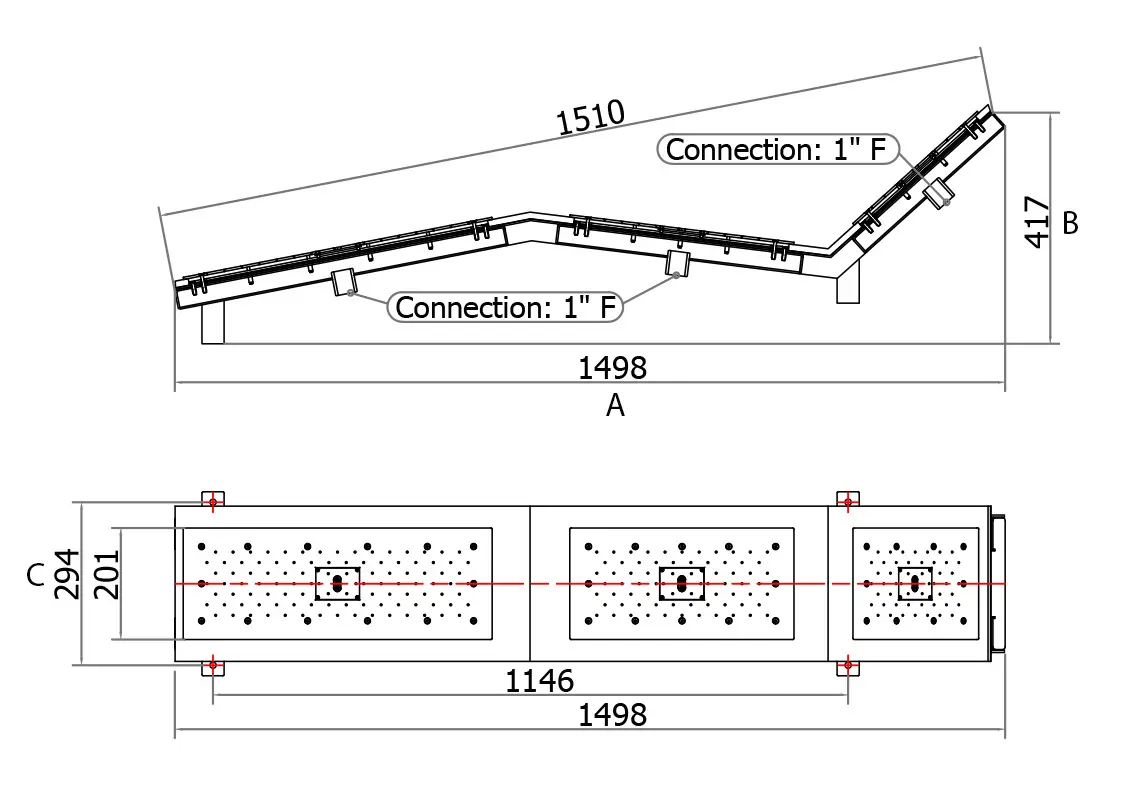

Effervescent bed with overall dimensions 201x1500 mm, composed of 3 tiles entirely made of stainless steel AISI 304, mirror polished upper finishing, prearranged for the installation on chaise longue made of reinforced concrete with waterproofing system and ceramic or mosaic coating.
Download the catalog sheet PDF
TECHNICAL DATA
Effervescent bed composed of 3 tiles entirely made of stainless steel AISI 304.
| Cod. | A (mm) | B (mm) | C (mm) | Flow ride (mc/h) | Connection (inch) |
|---|---|---|---|---|---|
| 020323 | 1498 | 417 | 294 | 50 | 1”F x N3 |
