Wall waterfall fountain
AISI 316L-V4A Stainless Steel wall waterfall fountain. Mirror polishing.
Download the catalog sheet PDF
TECHNICAL DATA
AISI 316L-V4A Stainless Steel wall waterfall fountain.

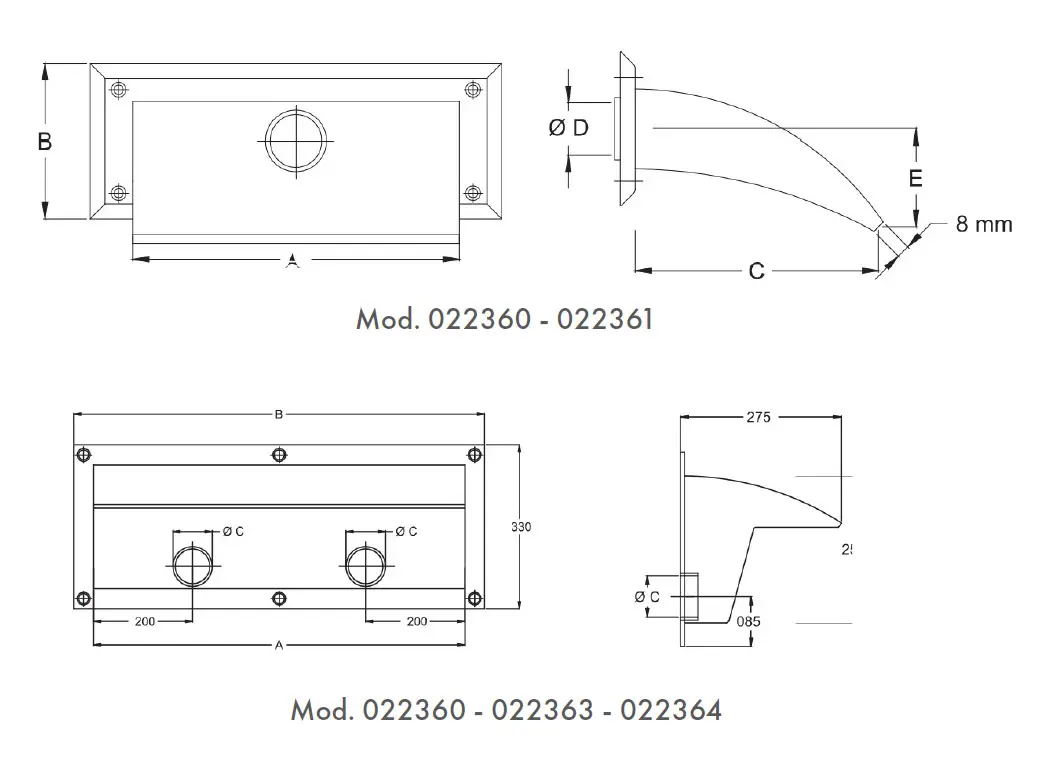

| Cod. | A (mm) | B (mm) | C (mm) | D Connection (inch) | E (mm) | Flow ride (mc/h) |
|---|---|---|---|---|---|---|
| 022360 | 300 | 155 | 213 | 1”½ | 85 | 15 |
| 022361 | 500 | 155 | 213 | 2”½ | 85 | 20 |
| Cod. | A (mm) | B (mm) | C Connection (mm) | Flow ride (mc/h) |
|---|---|---|---|---|
| 022362 | 750 | 830 | 2x1”½ | 30 |
| 022363 | 1000 | 1080 | 2x1”½ | 40 |
| 022364 | 1250 | 1330 | 2x2” | 50 |
Product compliant with the standards UNI EN 13451-1:2016 | UNI EN 13451-3:2016
