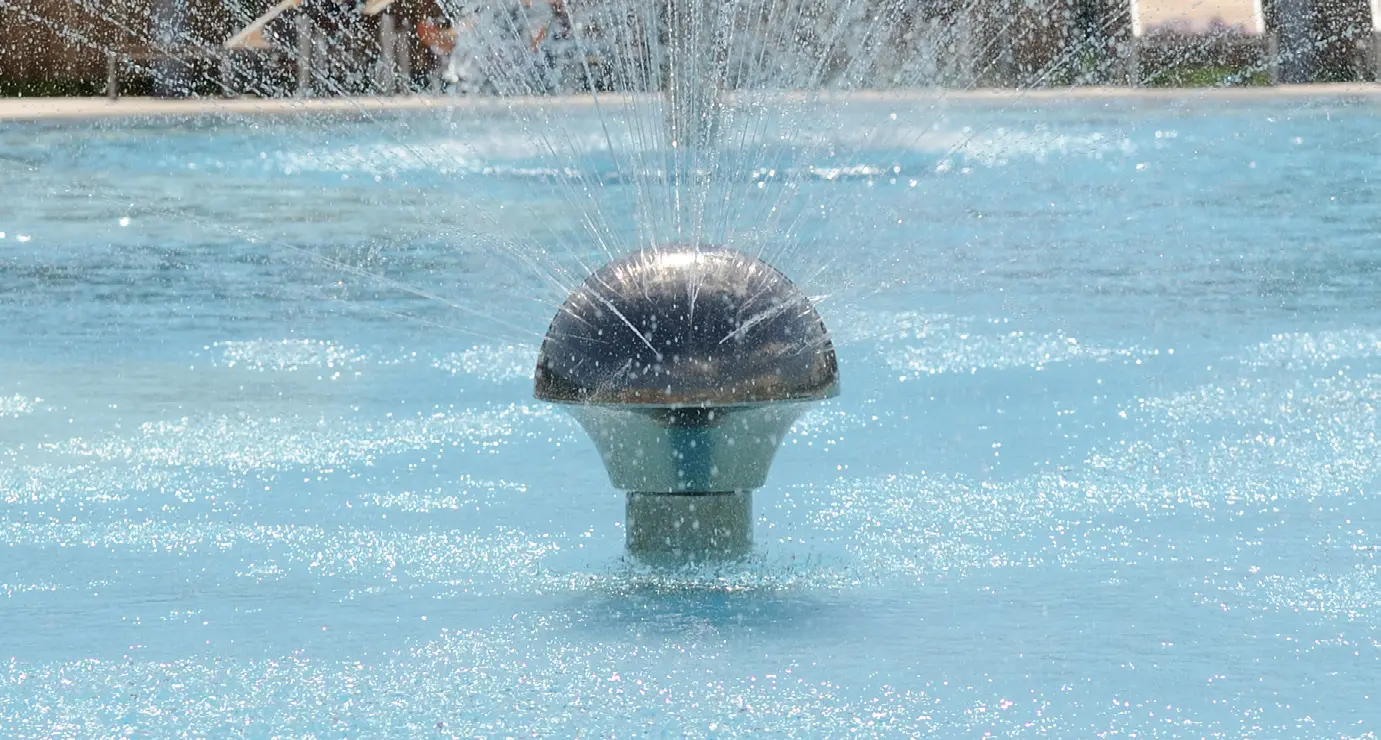

Water hedgehogs fountain
AISI 316L-V4A stailess steeel watrer game with capillary diffusion on thin spray. SDupplied with shell and column: height on request.
Mirror polishing.
Painting with color on request.
COUNTERFLANGE IS NOT INCLUDED.
Download the catalog sheet PDF

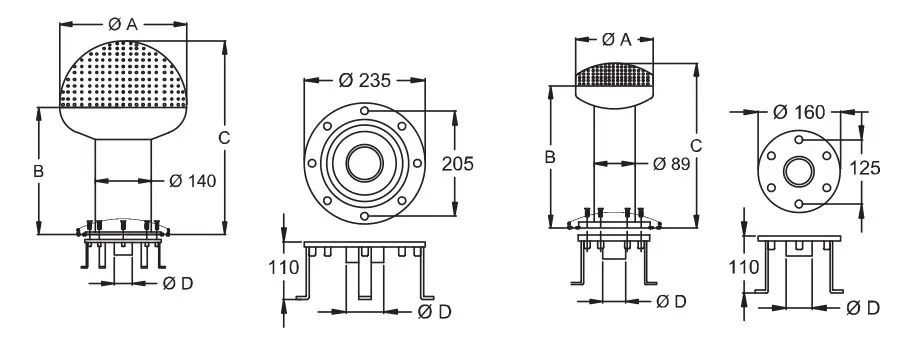

TECHNICAL DATA
AISI 316L-V4A stailess steeel watrer game with capillary diffusion on thin spray.
| Cod. | A (mm) | B (mm) | C (mm) | D Connection (inch) | Flow ride (mc/h) | Pump (hp) |
|---|---|---|---|---|---|---|
| 022355 | Ø 168 | 300 | 360 | 1”½F | 15 | 1.0 |
| 022356 | Ø 168 | 500 | 560 | 1”½F | 15F | 1.0 |
| 022357 | Ø 250 | 500 | 620 | 2”F | 22 | 1.5 |
CONTROFLANGIA
| Cod. |
|---|
| 022358 |
| 022359 |
Product compliant with the standards UNI EN 13451-1:2016 | UNI EN 13451-3:2016
