Fountain body and accessories
AISI 316L-V4A Stainless Steel fountain only body.
1”½M connections.
COUNTERFLANGE IS INCLUDED.
Mirror polishing.
AISI 316L-V4A Stainless steel accessories.
Download the catalog sheet PDF
TECHNICAL DATA
AISI 316L-V4A Stainless Steel fountain only body and accessories.

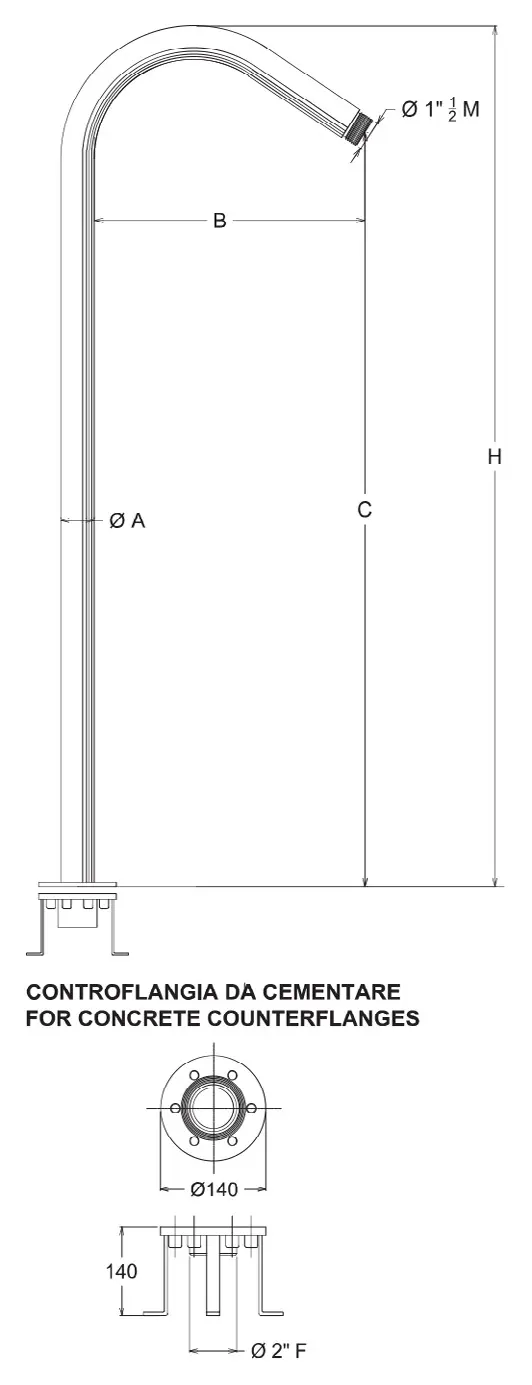

| Cod. | Type | Ø A mm | B (mm) | C (mm) | H (mm) | Pump (hp) | Flow ride (mc/h) |
|---|---|---|---|---|---|---|---|
| 022343 | D-60 | 60 | 490 | 1355 | 1575 | 1.5 | 20 |
ACCESSORI

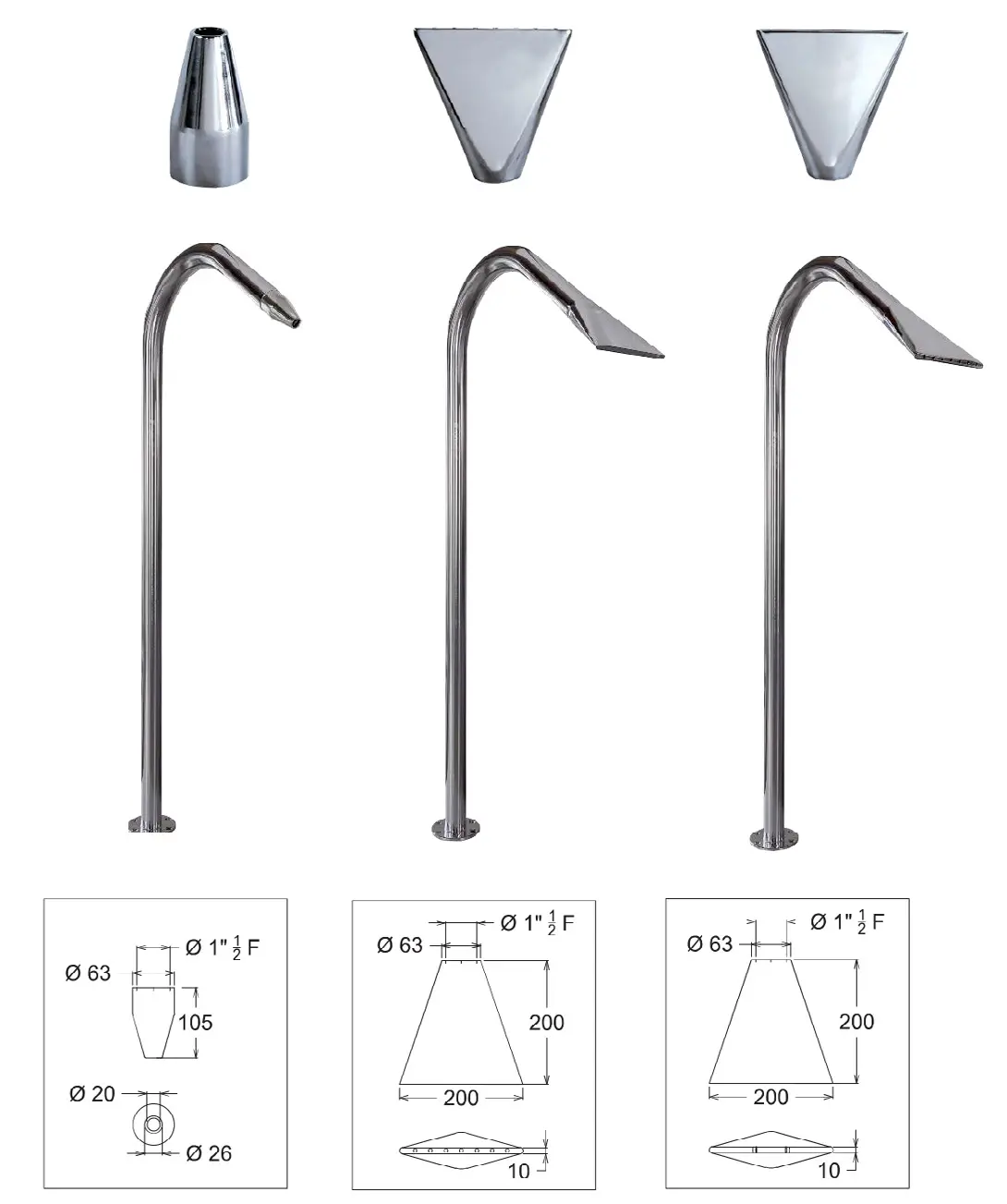

| Cod. | Type |
|---|---|
| 022344 | Ugello Ø26 - Drilled nozzle Ø26 |
| 022345 | Ventaglio - Fan 200 mm |
| 022346 | Ventaglio forato - Drilled fan 200 mm |
Product compliant with the standards UNI EN 13451-1:2016 | UNI EN 13451-3:2016
