Swimming Pool Components » Attractions »

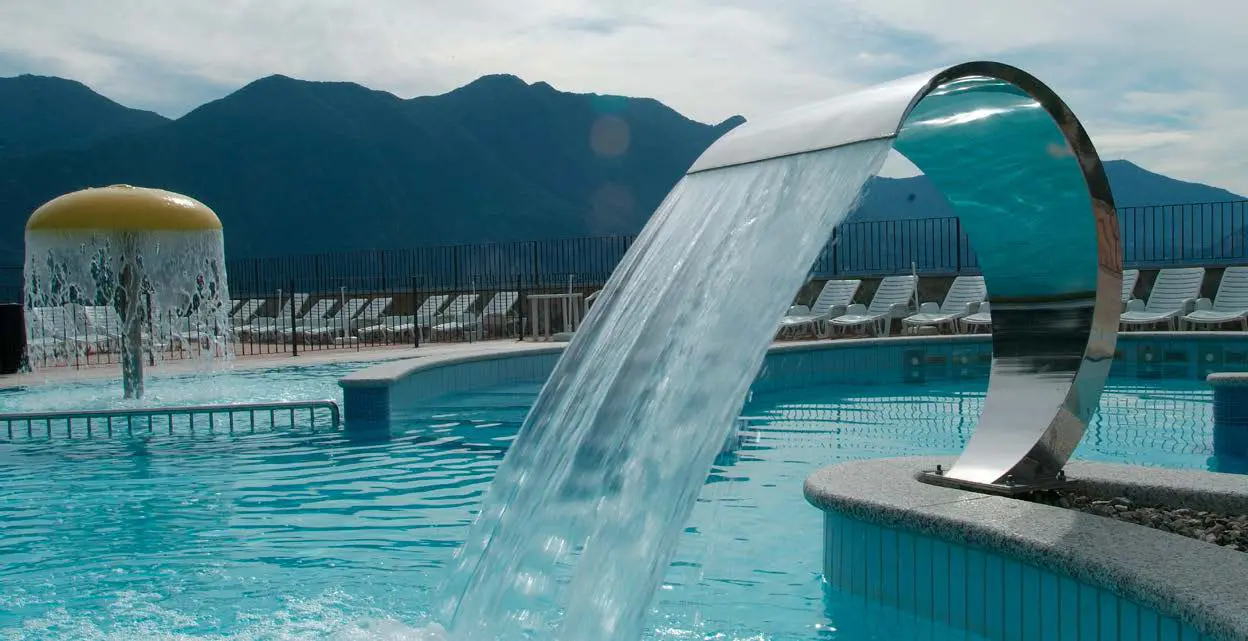

Halfmoon fountain
AISI 316L-V4A Stainless steel “halfmoon” fountain. Mirror polishing.
COUNTER FLANGE IS NOT INCLUDED.
Download the catalog sheet PDF

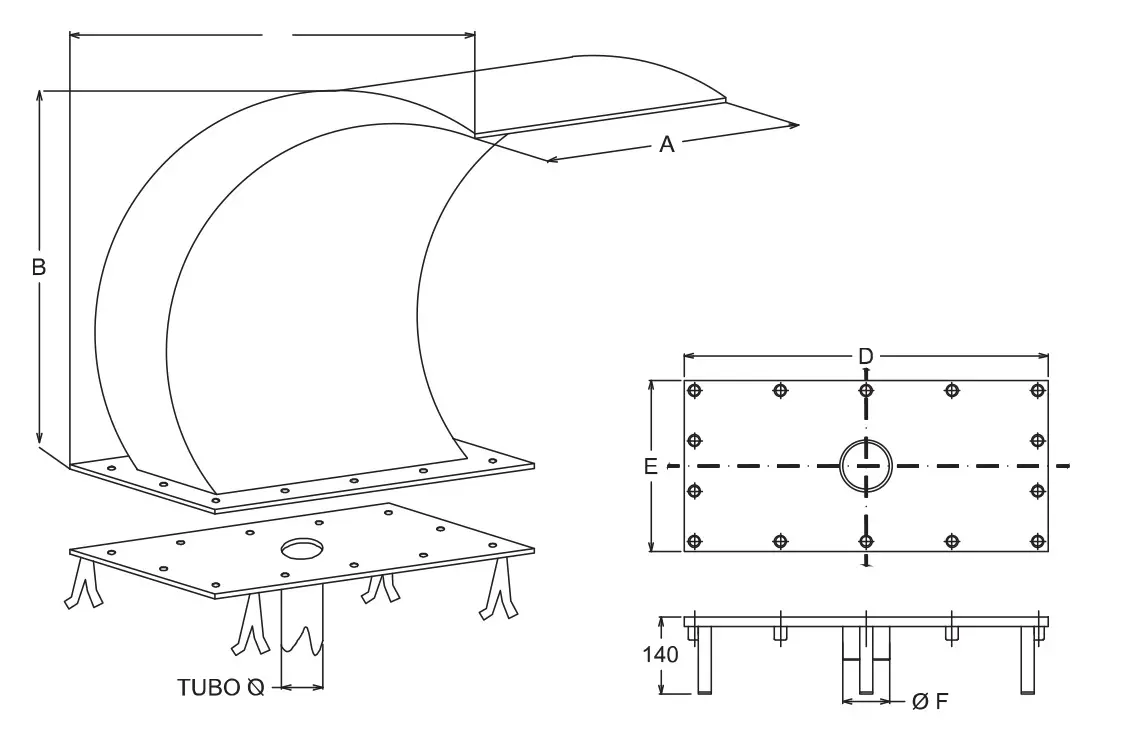

TECHNICAL DATA
AISI 316L-V4A Stainless steel “halfmoon” fountain.
| Cod. | Type | A (mm) | B (mm) | D (mm) | Pipe (mm) | Connection (inch) | Flow ride (mc/h) |
|---|---|---|---|---|---|---|---|
| 022337 | C-325 | 325 | 650 | 400 | Ø 75 | 2” ½F | 32 |
| 022338 | C-500 | 500 | 800 | 570 | Ø 90 | 3”F | 46 |
| 022339 | C-625 | 625 | 1000 | 700 | Ø 90 | 3”F | 57 |
CONTROFLANGIA
| Cod. |
|---|
| 022340 |
| 022341 |
| 022342 |
Product compliant with the standards UNI EN 13451-1:2016 | UNI EN 13451-3:2016
Request more information
