Fan fountain

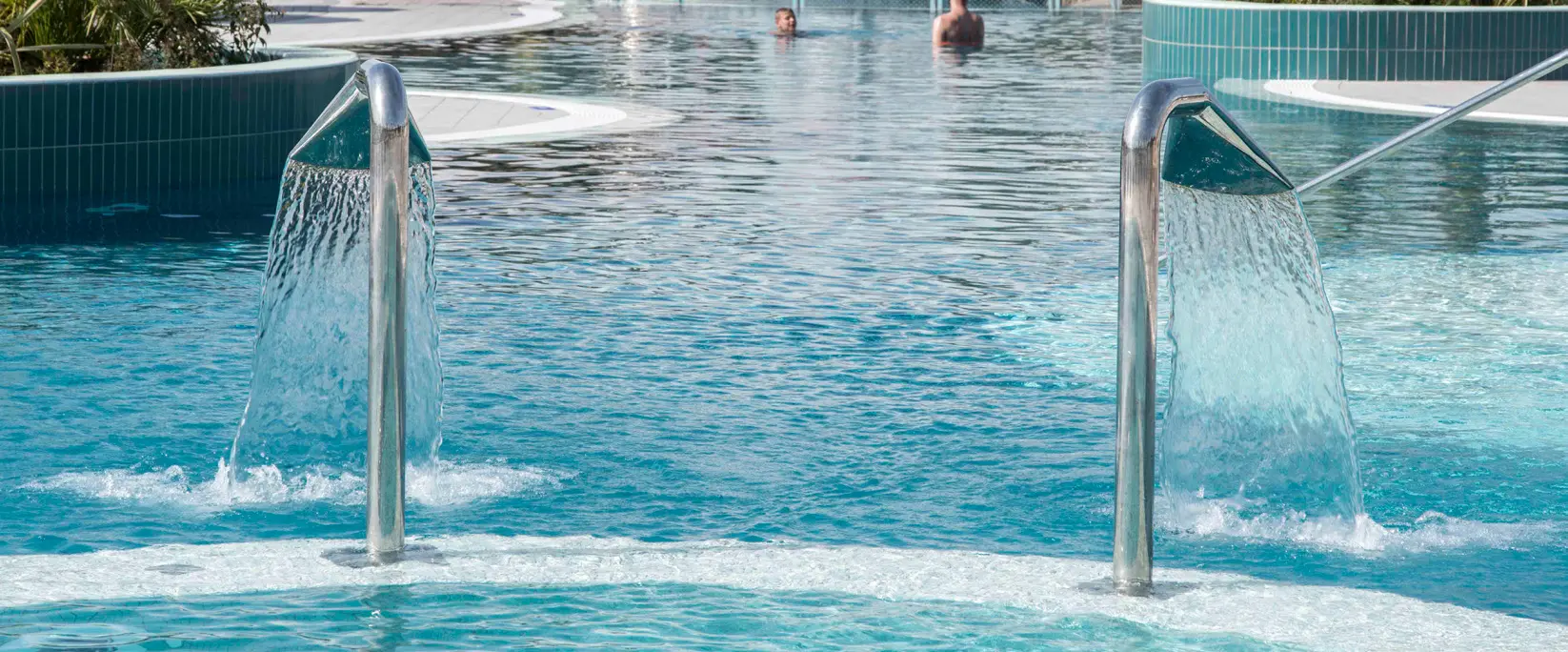

AISI 316L-V4A Stainless steel “fan” fountain. Mirror polishing.
COUNTER FLANGE IS NOT INCLUDED.
Download the catalog sheet PDF

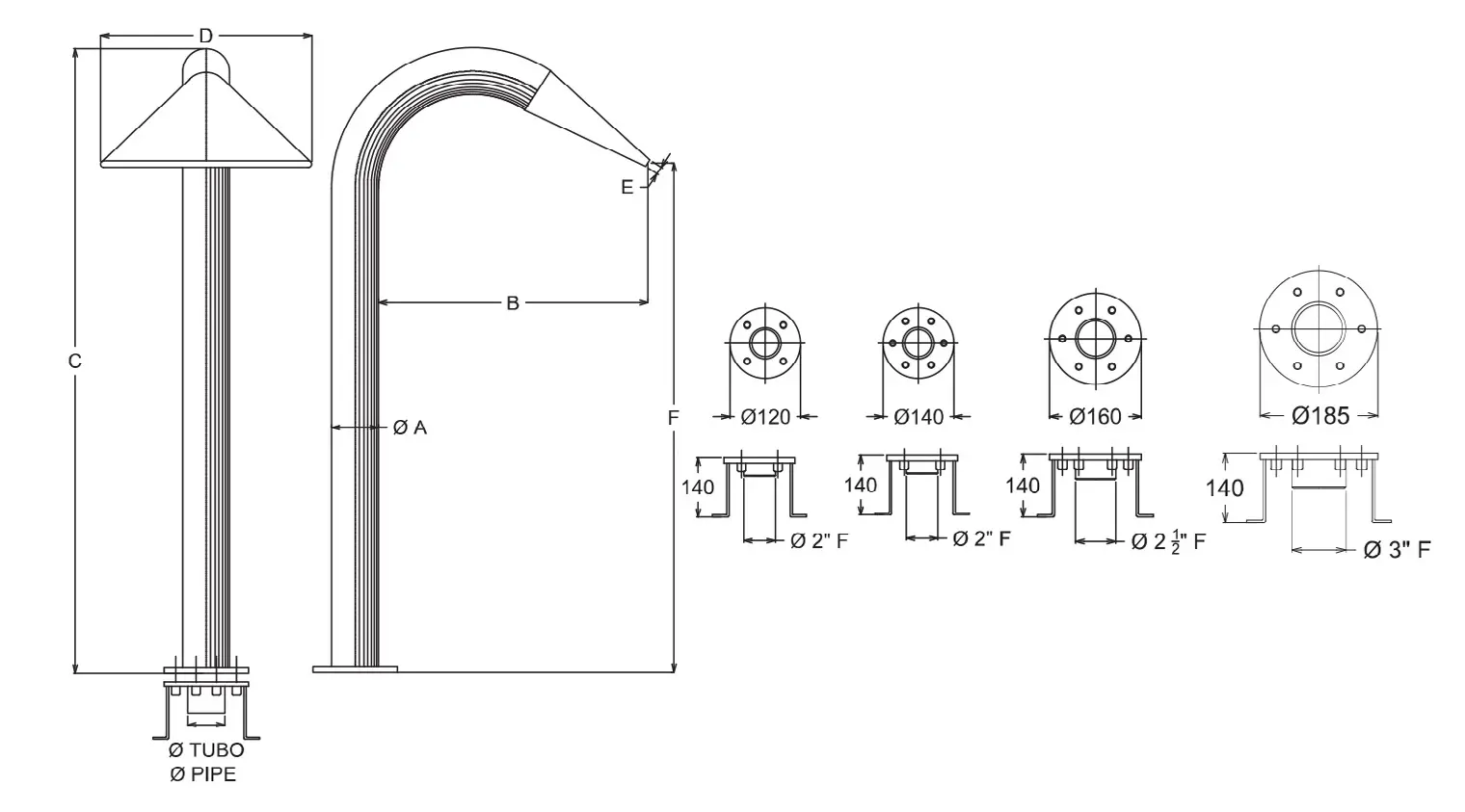

TECHNICAL DATA
AISI 316L-V4A Stainless steel “fan” fountain.
| Cod. | Type | A (mm) | B (mm) | C (h) | DxE (mm) | Pipe (mm) | Connection (inch) | Flow ride (mc/h) |
|---|---|---|---|---|---|---|---|---|
| 022329 | V-200 | Ø 60 | 475 | 1020 | 200x15 | 63 | 2"F | 20 |
| 022330 | V-300 | Ø 76 | 510 | 1080 | 300x15 | 63 | 2"F | 25 |
| 022331 | V-400 | Ø 89 | 625 | 1180 | 400x15 | 75 | 2 ½"F | 38 |
| 022332 | V-500 | Ø 114 | 700 | 1420 | 500x15 | 90 | 3"F | 50 |
CONTROFLANGIA
| Cod. |
|---|
| 022333 |
| 022334 |
| 022335 |
| 022336 |
Product compliant with the standards UNI EN 13451-1:2016 | UNI EN 13451-3:2016
