River nozzle

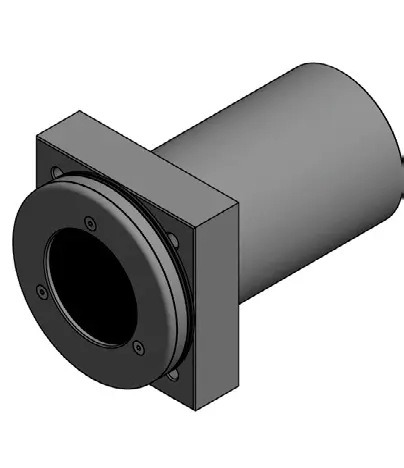

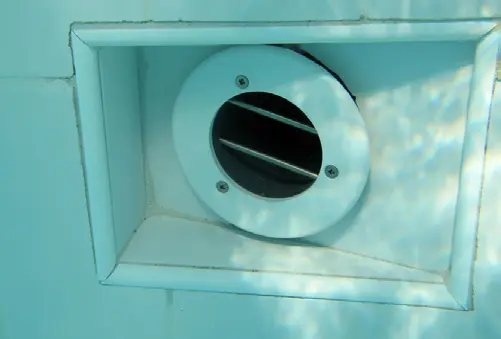

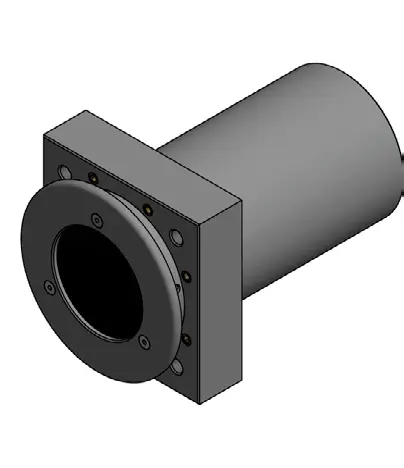

Nozzles made of PVC complete with protection grid, gaskets and external PVC flange with external diameter of 140 mm, Ø90 mm connection and A2 stainless steel screws. The terminal is inclined and available in various angles to facilitate the flow of water according to the curvature of the path.

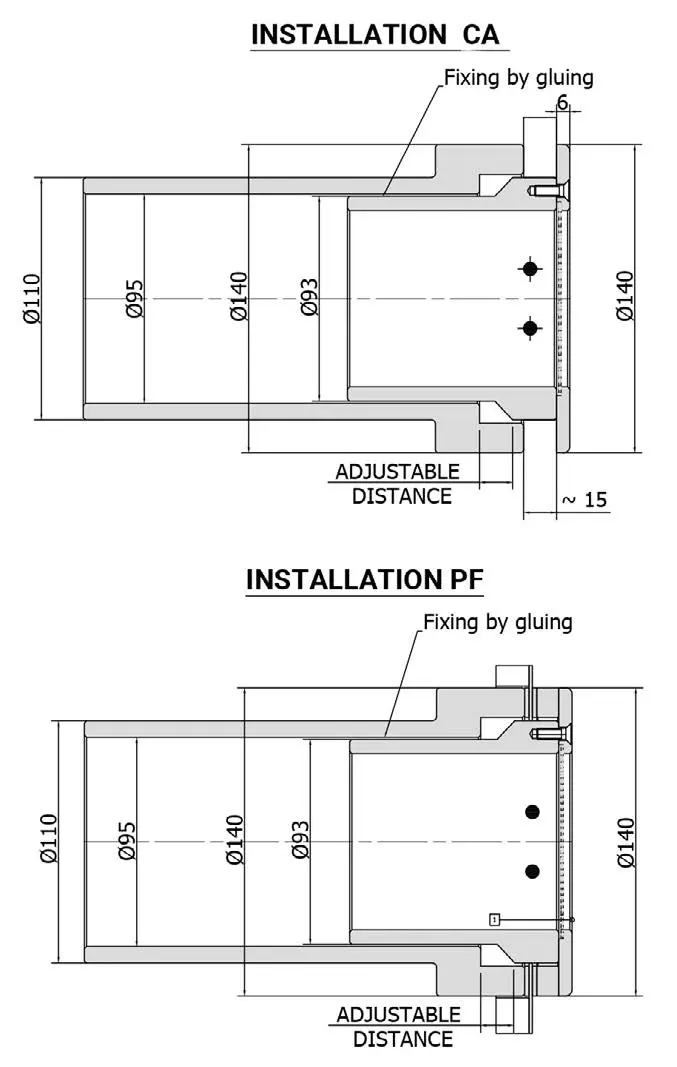

Depending on the type of installation, they are available in the following versions
• for reinforced concrete pools with ceramic/mosaic coating
• for prefabricated swimming pools with PVC membrane
• for reinforced concrete pools with PVC sheet coating o waterproofing
and ceramic/mosaic coating system (PF)
Download the catalog sheet PDF
TECHNICAL DATA
Nozzles made of PVC complete with protection grid, gaskets and external PVC flange.
| Cod. | Diameter (mm) | Flow ride (mc/h) | Speed (m/s) | Angle (°) | Connection (mm) |
|---|---|---|---|---|---|
| 005946_CA | Ø 140 | 45 | 2.5 | 20° | Ø 90 |
| 005947_CA | Ø 140 | 45 | 2.5 | 25° | Ø 90 |
| 005594_CA | Ø 140 | 45 | 2.5 | 35° | Ø 90 |
| 005539_CA | Ø 140 | 45 | 2.5 | 45° | Ø 90 |
| 006045_CA | Ø 140 | 45 | 2.5 | 65° | Ø 90 |
| 005946_PF | Ø 140 | 45 | 2.5 | 20° | Ø 90 |
| 005947_PF | Ø 140 | 45 | 2.5 | 25° | Ø 90 |
| 005594_PF | Ø 140 | 45 | 2.5 | 35° | Ø 90 |
| 005539_PF | Ø 140 | 45 | 2.5 | 45° | Ø 90 |
| 006045_PF | Ø 140 | 45 | 2.5 | 65° | Ø 90 |
Request technical sheet and/or more information
