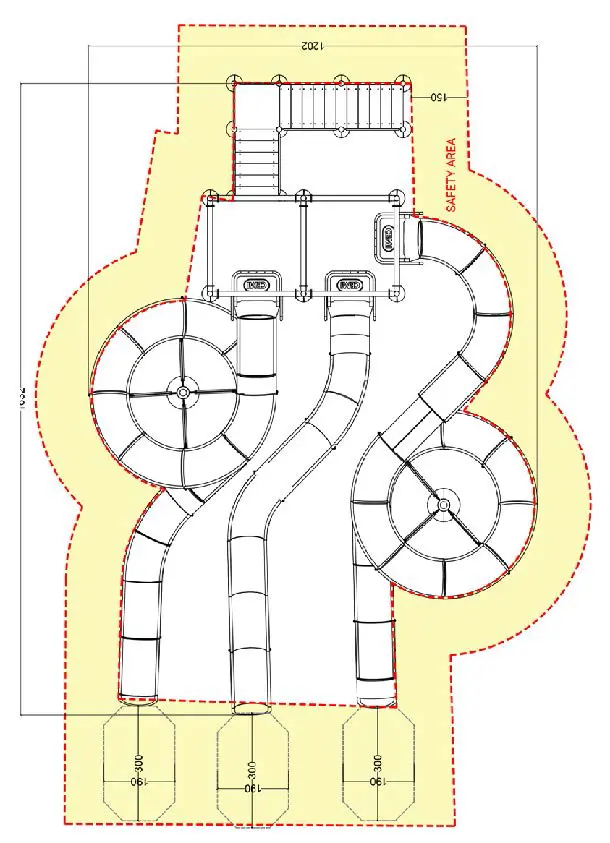

N°2 tower with n°3 slide
The aquaplay is complete with:
A. N° 02 square-shaped turrets made with a galvanised steel
structure and final painted finish complete with parapets;
B. walking surface with non-slip surface;
C. access ramp complete with anti-slip steps, parapets with galvanised
steel structure and final painted finish;
D. supporting pillars made of galvanised steel and final painted
finish;
E. N° 02 slides mod.Tobogan Ø900 realized with LRTM (Light
Resin Transfer Moulding) technology;
F. N° 01 slide mod.Tube Ø900 realized with LRTM (Light Resin
Transfer Moulding) technology.
Download the catalog sheet PDF
TECHNICAL DATA
Tower and slide for swimming pools and water parks.
| Cod. | Waterslide | Starting hight (m) | waterslide length (m) | Slope | Connection (mm) |
|---|---|---|---|---|---|
| 021035 | E: Tabogan | 2.70 | 11.40 | 21% | Ø140 |
| E(1): Tube | 2.70 | 23.40 | 10.5% | Ø140 | |
| E(2): Tube | 2.70 | 26.80 | 9% | Ø140 |
