Basic slide fun

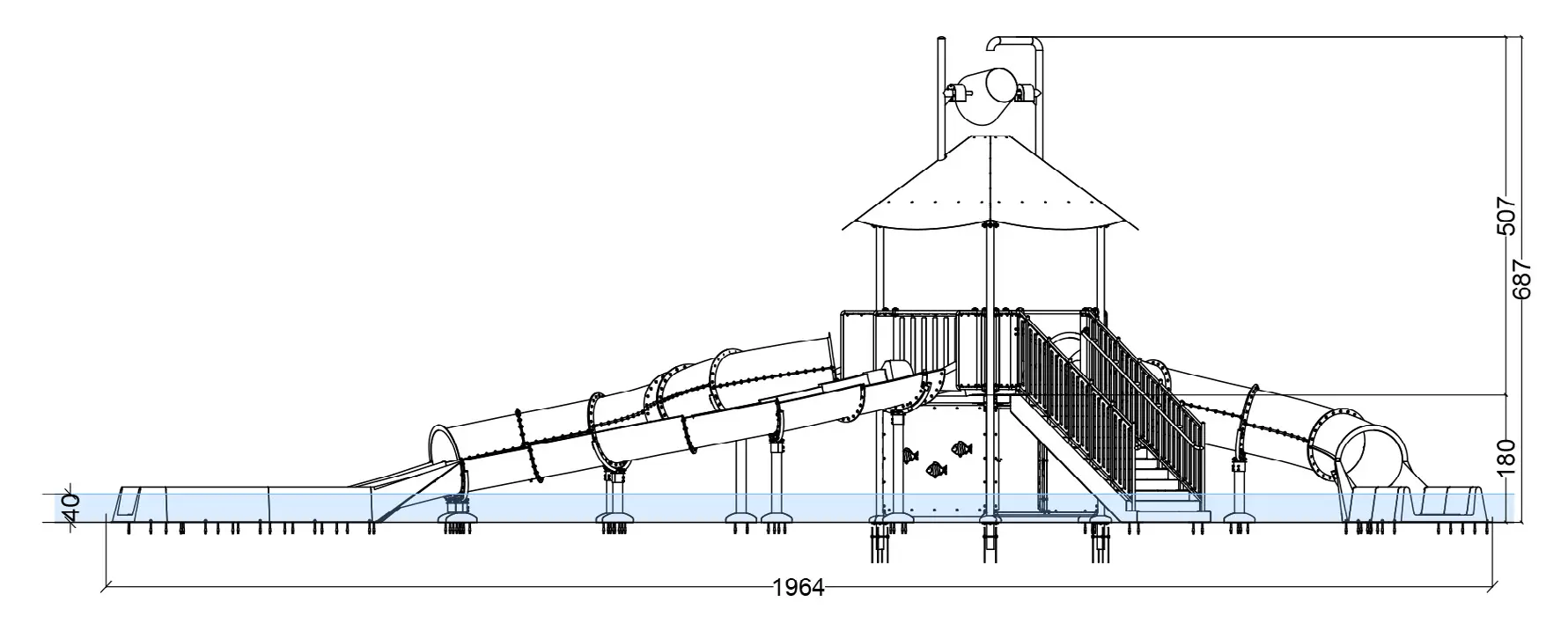

Interactive game composed of the following elements contextualized and combined with each other:
A. N° 01 hexagonal shaped turret made with a galvanised steel
structure and final painted finish complete with railings;
B. N° 01 cover for the turret;
C. walking surface with anti-slip surface;
D. access ramp complete with anti-slip steps, railings with galvanised
steel structure and final painted finish;
E. support pillars made of galvanised steel and painted finish;
F. N° 01 waterslide mod. Tobogan Ø900 realized with LRTM
(Light Resin Transfer Moulding) technology;
G. N° 02 water slides mod. Tube Ø900 realized with LRTM
(Light Resin Transfer Moulding) technology.
H. N° 01 bucket positioned above the cover.
Download the catalog sheet PDF
TECHNICAL DATA
Interactive game for swimming pools and water parks consisting of various slides.
| Cod. | Waterslide | Starting hight (m) | waterslide length (m) | Catch unit length (m) | Slope | Connection (mm) |
|---|---|---|---|---|---|---|
| 021023 | F(1) Tabogan | 1.80 | 7.60 | 3.50 | 17% | Ø140 |
| G(1): Tube | 1.80 | 7.17 | 3.50 | 18% | Ø140 | |
| G(2): Tube | 1.80 | 7.00 | 3.50 | 18% | Ø140 |
