Slim slide fun

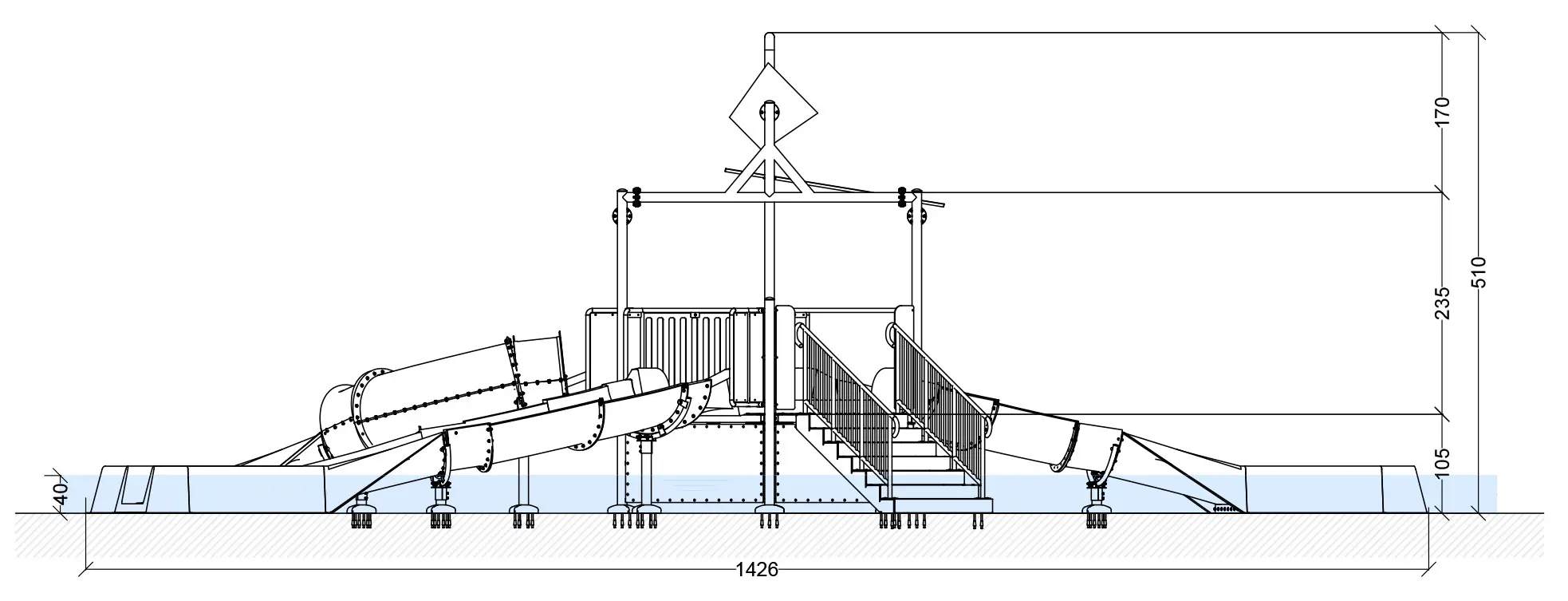

Interactive game composed of the following elements contextualized and combined with each other:
A. N° 01 hexagonal shaped turret made with a galvanised steel
structure and final painted finish complete with railings;
B. N° 01 cover for N° 01 turret;
C. walking surface with anti-slip surface;
D. access ramp complete with anti-slip steps, railings with galvanised
steel structure and final painted finish;
E. supporting pillars made of galvanised steel and painted final
finish;
F. N° 02 waterslides mod. Tobogan Ø900 realized with LRTM
(Light Resin Transfer Moulding) technology;
G. N° 01 water slide mod. Tube Ø900 realized with LRTM (Light
Resin Transfer Moulding) technology.
H. N° 01 bucket positioned above the cover;
Download the catalog sheet PDF
TECHNICAL DATA
Interactive game for swimming pools and water parks consisting of various slides.
| Cod. | Waterslide | Starting hight (m) | waterslide length (m) | Catch unit length (m) | Slope | Connection (mm) |
|---|---|---|---|---|---|---|
| 021021 | F(1) Tabogan | 1.05 | 3.40 | 2.00 | 17% | Ø140 |
| F(2) Tabogan | 1.05 | 3.40 | 2.00 | 17% | Ø140 | |
| G: Tube | 1.05 | 3.10 | 2.00 | 18% | Ø140 |
Request technical sheet and/or more information
