Supports for pump

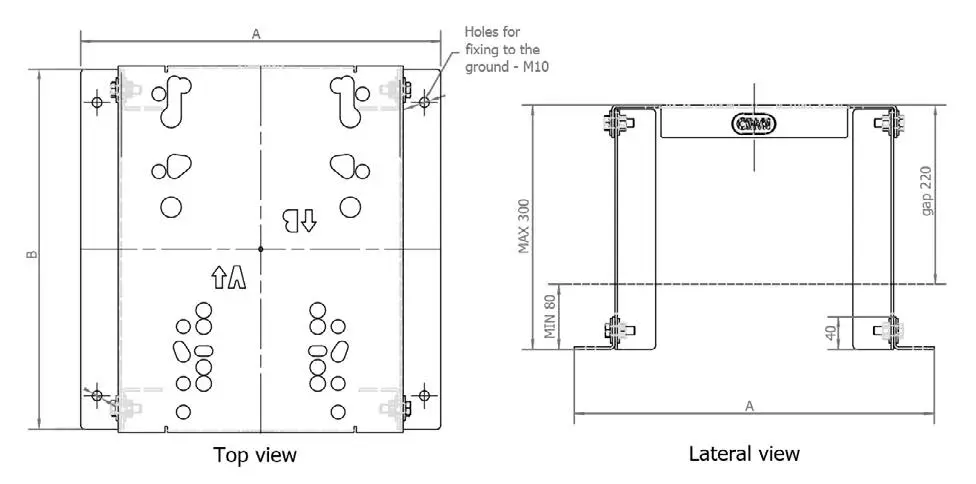

AISI 304 stainless steel pump supports, available in 2 sizes and consisting of a support base prepared for the installation of “Calpeda” model pumps, with adjustable 4 feet from a minimum of 8 cm to a maximum of 30 cm, 2 support brackets with holes for ground fixing.
Download the catalog sheet PDF
TECHNICAL DATA
AISI 304 stainless steel pump supports.
| Cod. | Dim. AxB (mm) |
|---|---|
| 020456 | 350x450 |
| 020457 | 420x600 |
| Cod. | 020456 | 020457 |
|---|---|---|
| Mod. Pump | Calpeda A40 | Calpeda MPC 11 |
| Calpeda A50 | Calpeda MPC 21/A | |
| Calpeda NMP N32/12 | Calpeda MPC 31/B | |
| Calpeda NMP 50/12 | Calpeda MPC 41/A | |
| Calpeda NM4 25 | Calpeda MPC 51/A | |
| Calpeda NM4 32/162 | Calpeda MPC 61/A | |
| Calpeda NM4 32/20 | Calpeda MPC 71/B | |
| Calpeda NM4 40/16 | Calpeda NM4 65/25 | |
| Calpeda A65 | Calpeda NM4 65/31 | |
| Calpeda A80 | Calpeda NM4 80/20 | |
| Calpeda NMP 65 | Calpeda NM4 80/25 | |
| Calpeda NM4 40/20 | Calpeda NM4 80/31 | |
| CalpedaNM4 40/25 | Calpeda NM4 100/20 | |
| Calpeda NM4 50/16 | Calpeda NM4 100/25 | |
| Calpeda NM4 50/20 | Calpeda NM4 100/31 | |
| Calpeda NM4 50/25 | Calpeda M4 125/25 | |
| Calpeda NM4 65/16 | ||
| Calpeda NM4 65/20 | ||
| Calpeda NM4 80/16 | ||
| Calpeda |
