Prefilters
The prefilters are made of HDPE (high-density polyethylene) and are complete with an internal basket with a stainless steel AISI 304 grid and a plexiglass cover, a vent valve positioned on the upper cover, and a drain plug located on the lower part of the prefilter body.
Pressure tested up to 3 bar, in order to guarantee the tightness of the welds.
Operating pressure: 0,5 bar
Download the catalog sheet PDF
TECHNICAL DATA
The prefilters are made of HDPE and are complete with an internal basket with a stainless steel grid.

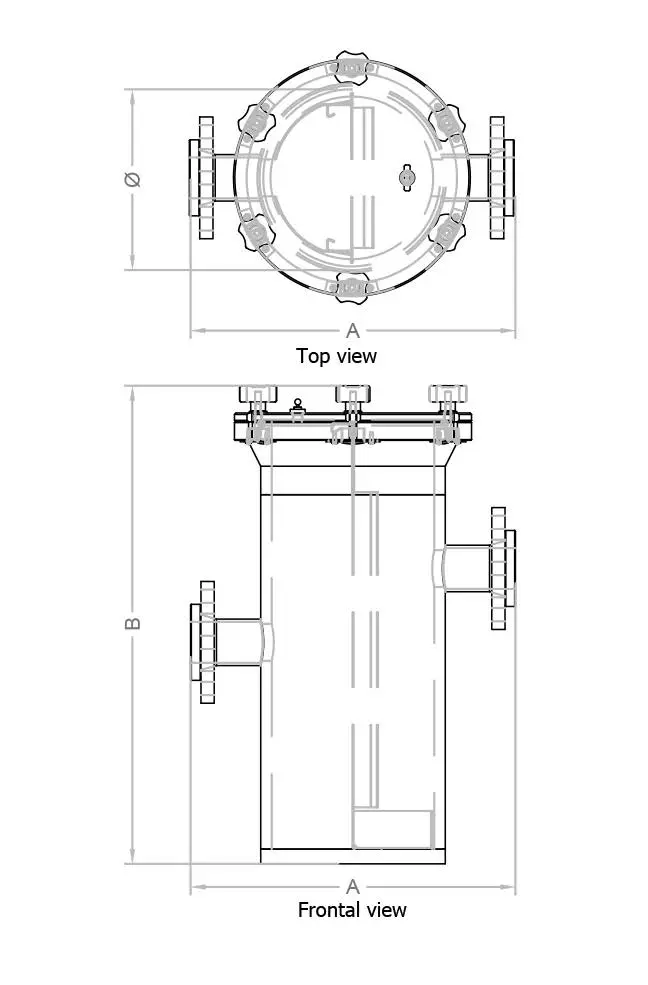

| Cod. | Connection (inch) | Dim. AxBxC (mm) | Diameter (Ø mm) | Flow ride (mc/h) |
|---|---|---|---|---|
| 009245 | DN 50 | 440x625 | 250 | 12 |
| 009246 | DN 65 | 460x695 | 250 | 20 |
| 009247 | DN 80 | 477x695 | 250 | 30 |
| 009248 | DN 100 | 502x695 | 250 | 48 |
| 009250 | DN 125 | 507x695 | 250 | 75 |
| 009251 | DN 150 | 585x745 | 315 | 108 |
| 009253 | DN 200 | 689x795 | 400 | 192 |
