5-way automatic valve BRS 98® - quality washing

Automatic 5-way valve, resistant to working pressures up to 4 bar, with automatic rising device in the versions with 2.5” and 4” connections (High-quality rinse for automatic rinsing following the backwash phase. Compatible with BRS 98® models in 2 1/2" and 4" sizes).

The valve body is made of marine bronze, the shafts of AISI 316 stainless steel and the butterflies of neoprene. Operation is guaranteed by an electric actuator powered at 24 VDC with IP65 protection.

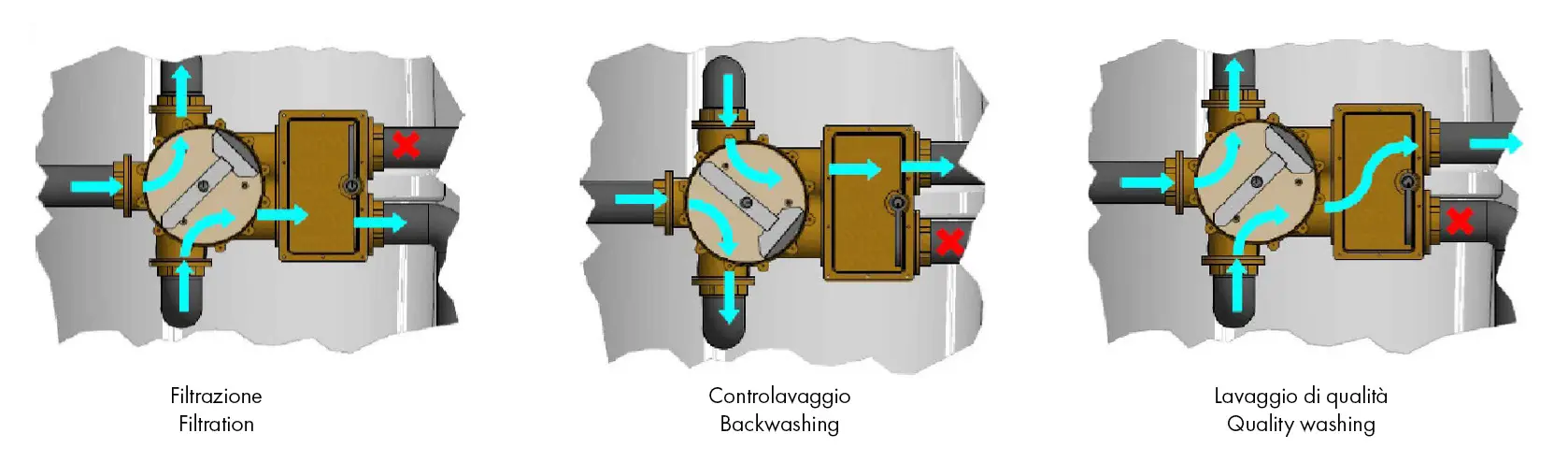

The filtration phases are managed by programming the electronic control unit (PROLOGIC X Cod. 020503).

Catalog sheet PDFDownload the catalog sheet PDF
5-way automatic valve BRS 98® - quality washing 5-way automatic valve BRS 98® - quality washing 5-way automatic valve BRS 98® - quality washing

TECHNICAL DATA

Automatic 5-way valve (High-quality rinse for automatic rinsing following the backwash phase).

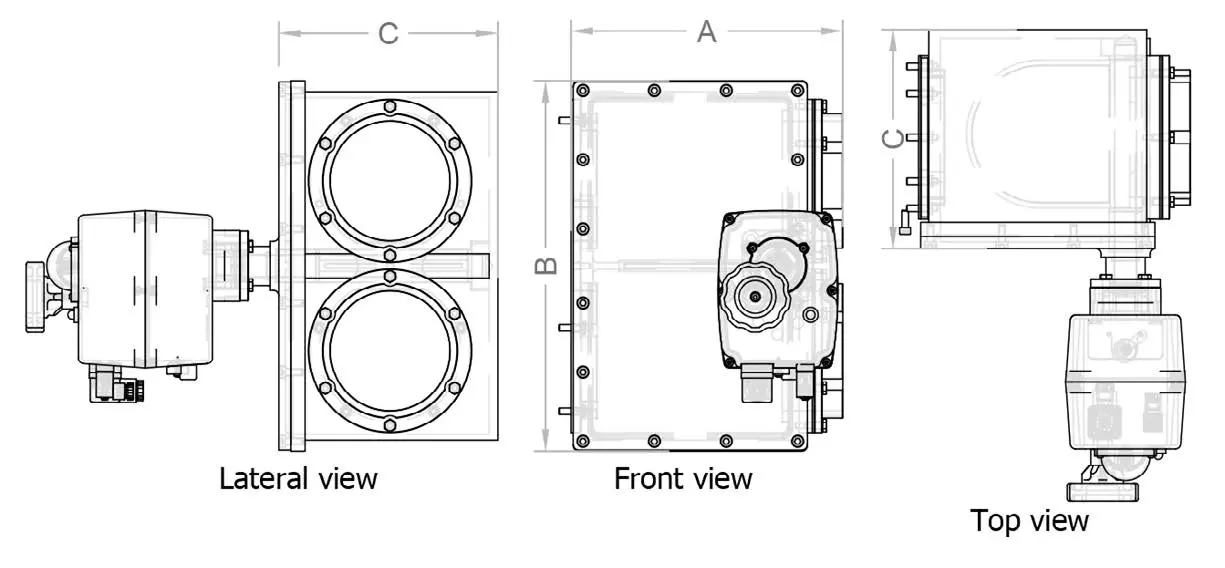

Cod. Connection (inch) Dim. AxBxC (mm) Flow ride (mc/h)
001000 2 ½ 186.5x270x140 max 30
001001 4 247x340x201 max 70

Request technical sheet and/or more information

Call us to request information.
