5-way automatic valve BRS 98®
Automatic 5-way valve, resistant to working pressures up to 4 bar, with automatic rising device in the versions with 2.5” and 4” connections (quality washing). The valve body is made of marine bronze, the shafts of AISI 316 stainless steel and the butterflies of neoprene. Operation is guaranteed by an electric actuator powered at 24 VDC with IP65 protection.

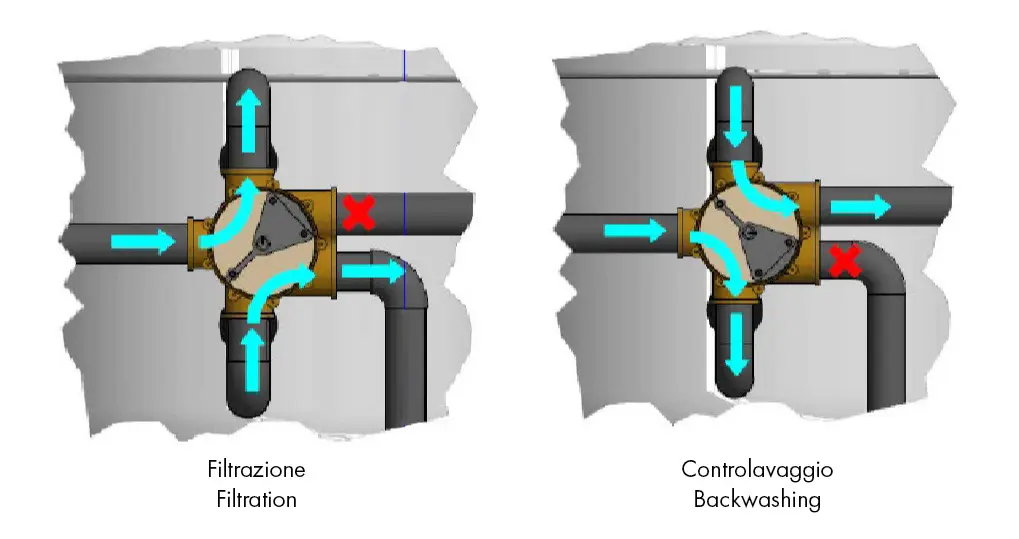

The filtration phases are managed by programming the electronic control unit (PROLOGIC X Cod. 020503).
Download the catalog sheet PDF
TECHNICAL DATA
Automatic 5-way valve, resistant to working pressures up to 4 bar.

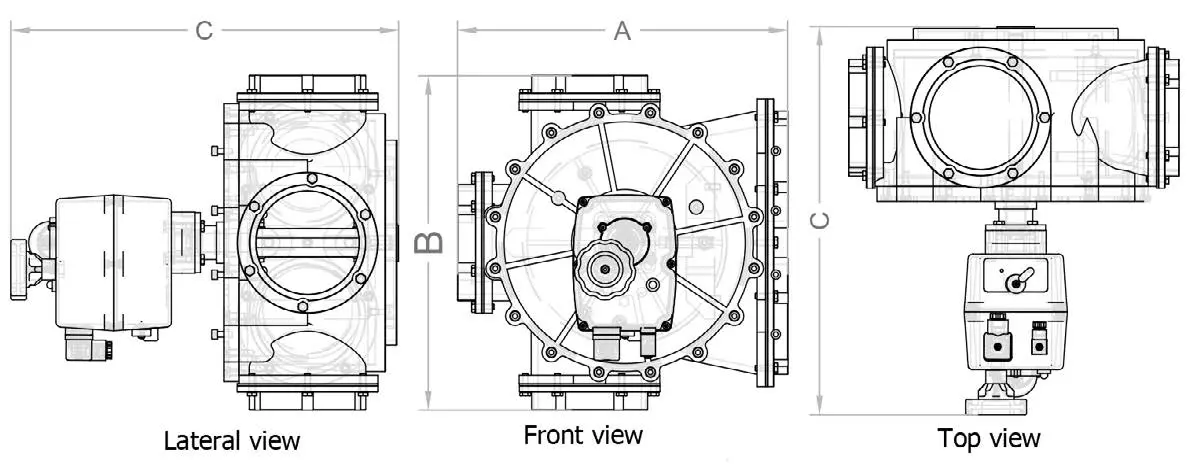

| Cod. | Connection (inch) | Dim. AxBxC (mm) | Flow ride (mc/h) |
|---|---|---|---|
| 001002 | 2” | 250x250x325 | max 18 |
| 001003 | 2” ½ | 325x325x368 | max 30 |
| 001004 | 4 | 352x356x413 | max 70 |
