Curved overflow grid in polypropylene

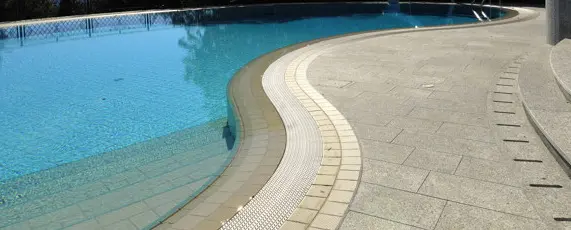

Design: an innovative design that allows for curves with a radius of up to 50 cm. Its clean and comfortable shape provides a pleasant foot massage sensation.

Material: the grate is made of polypropylene, a uv-resistant material that prevents yellowing caused by sunlight. It is also impact-resistant, ensuring durability under stress and maintaining its integrity without becoming brittle. Additionally, it is free from chromium, cadmium, and lead, in compliance with current environmental regulations.

Safety: compliant with safety standards for protecting children’s feet and hands, even at maximum curvature. The surface is slip-resistant, comfortable to the touch, and wave-like. Suitable for both public and private spaces, its design ensures it won’t float.

Dimensions: available in three widths: 20, 25, and 30 cm, with a height of 2.5 Cm, in accordance with water drainage channel standards. The grate consists of 27 slats pre-assembled into 50 cm strips, minimizing installation time. The gap between slats is minimal (8 mm), ensuring safety for children’s fingers, even at maximum curvature.

Structure: the modular structure with central inserts simplifies assembly, creating a seamless effect. The design and shape allow for efficient water drainage, keeping the grate clean and hygienic at all times.

Colors: e agreed upon during the offer stage.

Certifications: the grate is certified under reach and rohs standards and complies with regulations regarding polycyclic aromatic hydrocarbons (pahs).

Eco friendly: made from fully recyclable material, the grate follows a policy of environmental sustainability, contributing to a greener future.
