Round bottom wells - for concrete
AISI 316L-V4A stainless steel round bottom well with AISI 316L stainless steel cover. Upper mirrow polished anti vortex grid.
FOR CONCRETE.
Download the catalog sheet PDF
TECHNICAL DATA
Stainless steel round bottom well for concrete.

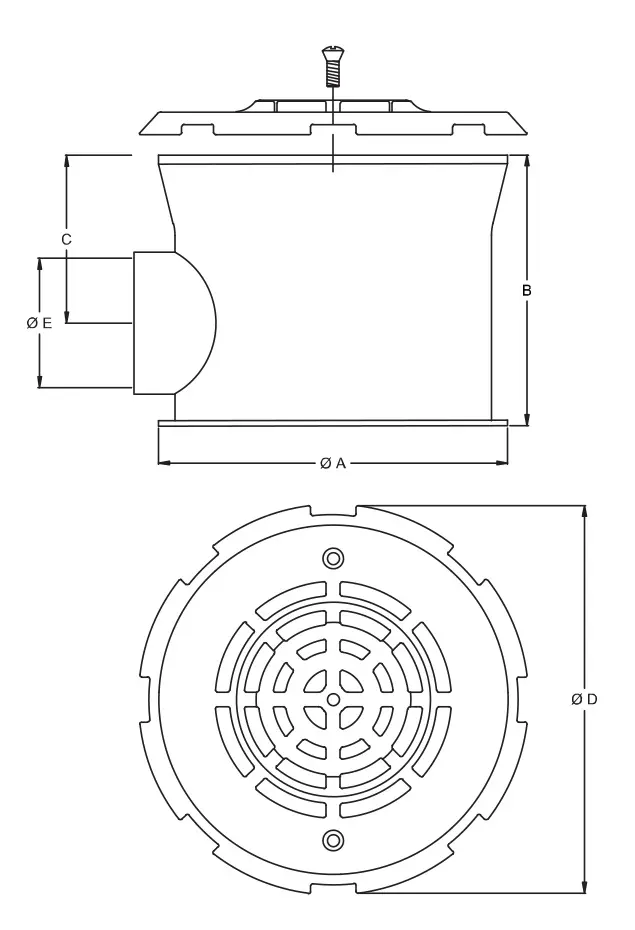

| Cod. | A (mm) | B (mm) | C (mm) | D (mm) | Ø E | Flow ride (mc/h) |
|---|---|---|---|---|---|---|
| 006047_112RMCA | 170 | 125 | 65 | 190 | Ø 1 ½ | 10 |
| 006047_2RMCA | 170 | 125 | 65 | 190 | Ø 2” | 18 |
| 006047_212RMCA | 220 | 190 | 140 | 250 | Ø 2 ½ | 25 |
Product compliant with the standards UNI EN 13451-1:2016 | UNI EN 13451-3:2016 | UNI 16713-2:2016
