Square bottom wells - for liner
AISI 316L-V4A stainless steel square bottom well with AISI 316L stainless steel cover. Upper mirrow polished grid.
For LINER.
Download the catalog sheet PDF

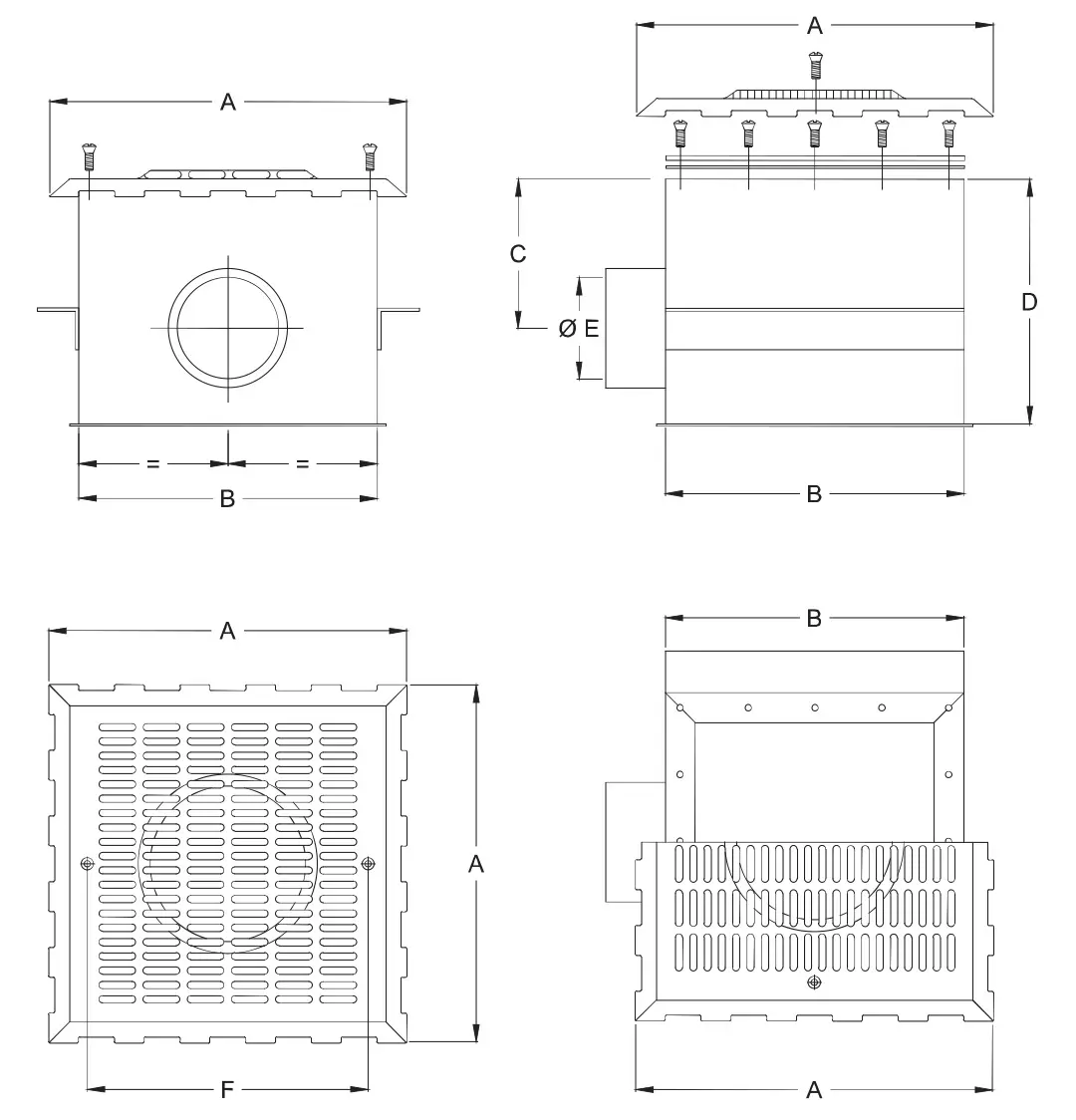

TECHNICAL DATA
Stainless steel square bottom well for liner.
| Cod. | Type | A (mm) | B (mm) | C (mm) | D (mm) | Ø E (DN/inches) | F | Flow ride (mc/h) |
|---|---|---|---|---|---|---|---|---|
| 006047_2QMPF | 200x200 | 250 | 200 | 115 | 170 | Ø 2”F | 176 | 21.71 |
| 006047_3QMPF | 300x300 | 350 | 300 | 200 | 285 | Ø 4”F | 285 | 59.54 |
| 006047_4QMPF | 450x450 | 500 | 450 | 275 | 450 | DN 150 | 435 | 133.96 |
Product compliant with the standards UNI EN 13451-1:2016 | UNI EN 13451-3:2016 | UNI 16713-2:2016
