Swimming Pool Components » Recirculation accessories »
Standard bottom grids
AISI 316L-V4A stainless steel standard bottom grid. Mirror polishing
Download the catalog sheet PDF

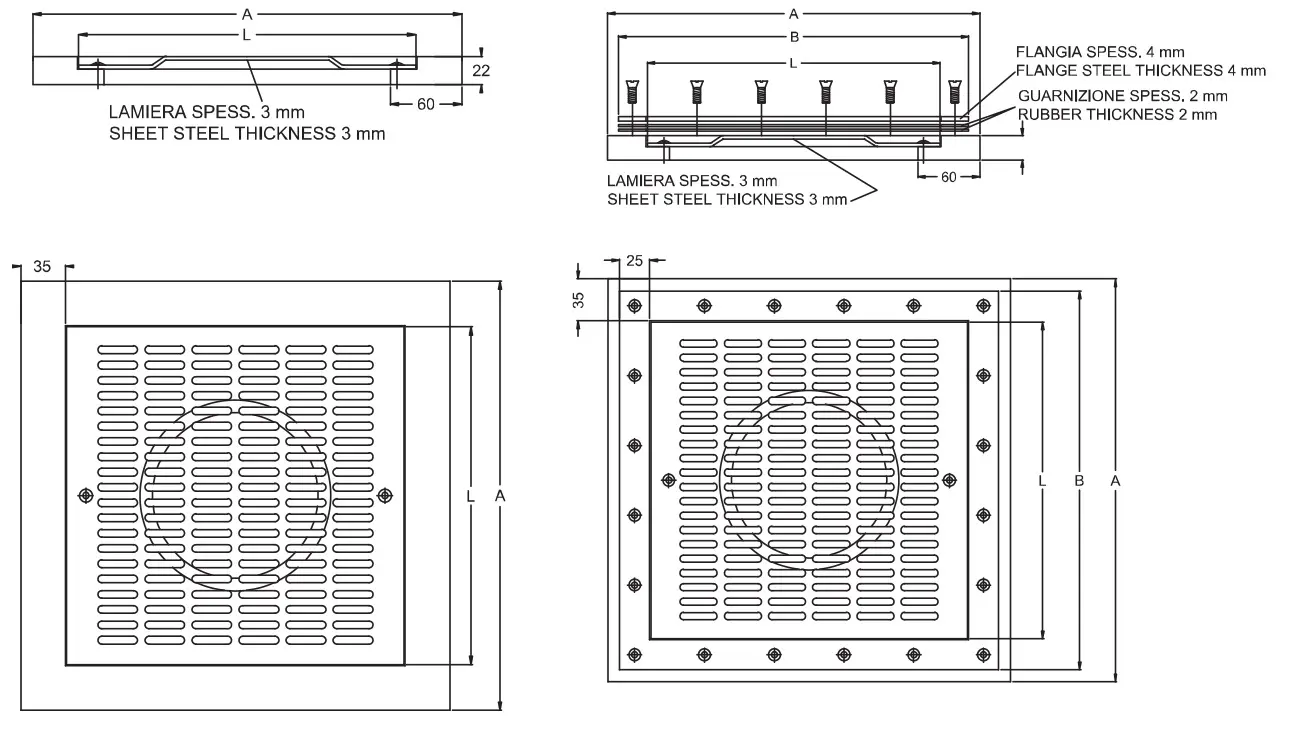

TECHNICAL DATA
Stainless steel standard bottom grid.
| Cod. | Models | A (mm) | L (mm) | Flow ride (mc/h) |
|---|---|---|---|---|
| 001369_MCA | C.A | 280x280 | 200x200 | 17 |
| 001367_MCA | C.A | 280x280 | 200x200 | 17 |
| 001370_MCA | C.A | 380x380 | 300x300 | 39 |
| 001369_MPF | PF | 380x380 | 300x300 | 39 |
| 001367_MPF | PF | 480x480 | 400x400 | 69 |
| 001370_MPF | PF | 480x480 | 400x400 | 69 |
Product compliant with the standards UNI EN 13451-1:2016 | UNI EN 13451-3:2016 | UNI 16713-2:2016
Request more information
