Swimming Pool Components » Recirculation accessories »

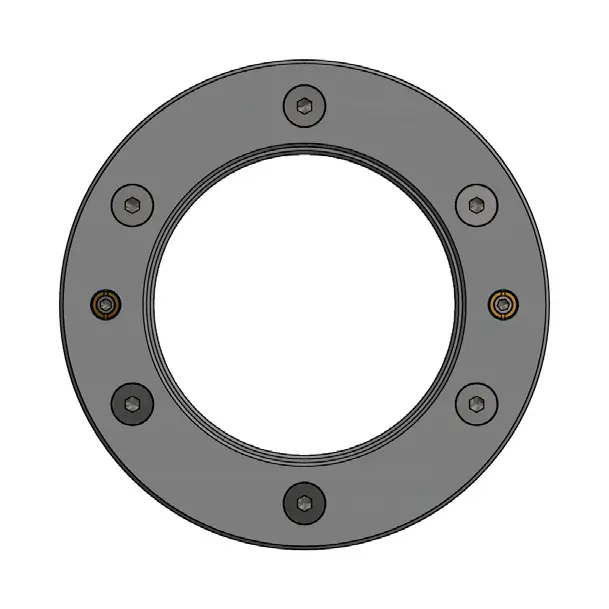

Drain nozzle for overflow channel
Drain nozzle for installation inside the overflow channel for swimming pools with prefabricated/reinforced concrete structure with PVC membrane or with waterproofing system with ceramic/mosaic covering.
It is made of PVC with high resistance to pressure and wear, complete with PVC counter flange, A2 stainless steel screws.

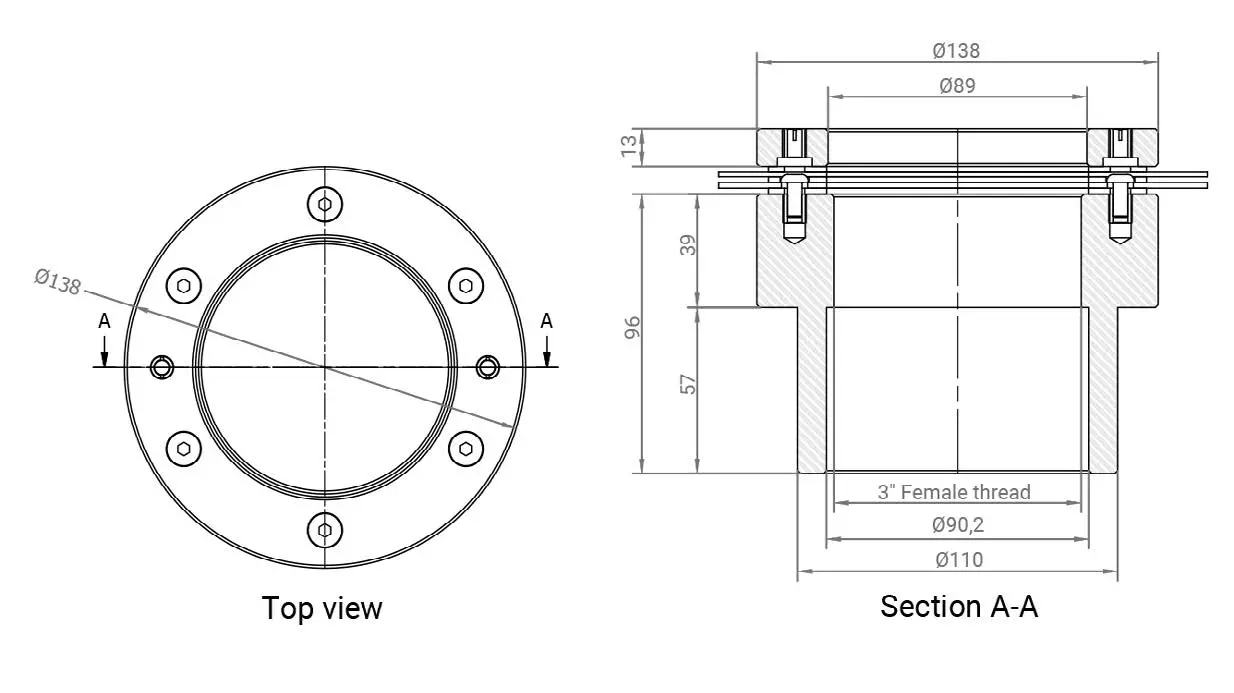

PVC flange external diameter 138 mm.
Download the catalog sheet PDF
TECHNICAL DATA
Drain nozzle for installation inside the overflow channel for swimming pools.
| Cod. | Diameter (mm) | Connection (inch) | Flow ride (mc/h) |
|---|---|---|---|
| 007396 | Ø 138 | 3" | 15 |
Product compliant with the standards UNI EN 13451-1:2016 | UNI EN 13451-3:2016 | UNI 16713-2:2016
Request technical sheet and/or more information
