Vacuum outlet

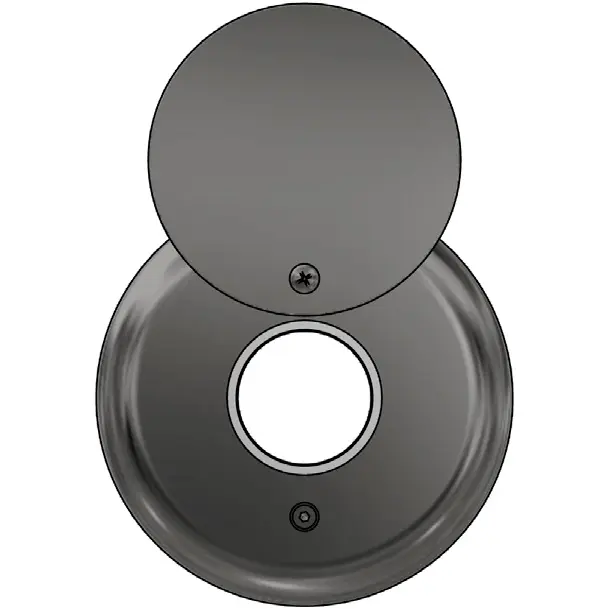

Vacuum outlet for wall installation for swimming pools with prefabricated/ reinforced concrete structure with PVC membrane covering or with waterproofing system with ceramic/mosaic covering. It is made of PVC with high resistance to pressure and wear, complete with AISI 304 stainless steel flange, AISI 304 polished stainless steel flange cover, A2 stainless steel screws.
It’s possible the installation on the bottom in case there is the presence of a “beach” zone (surround zone in the pool).

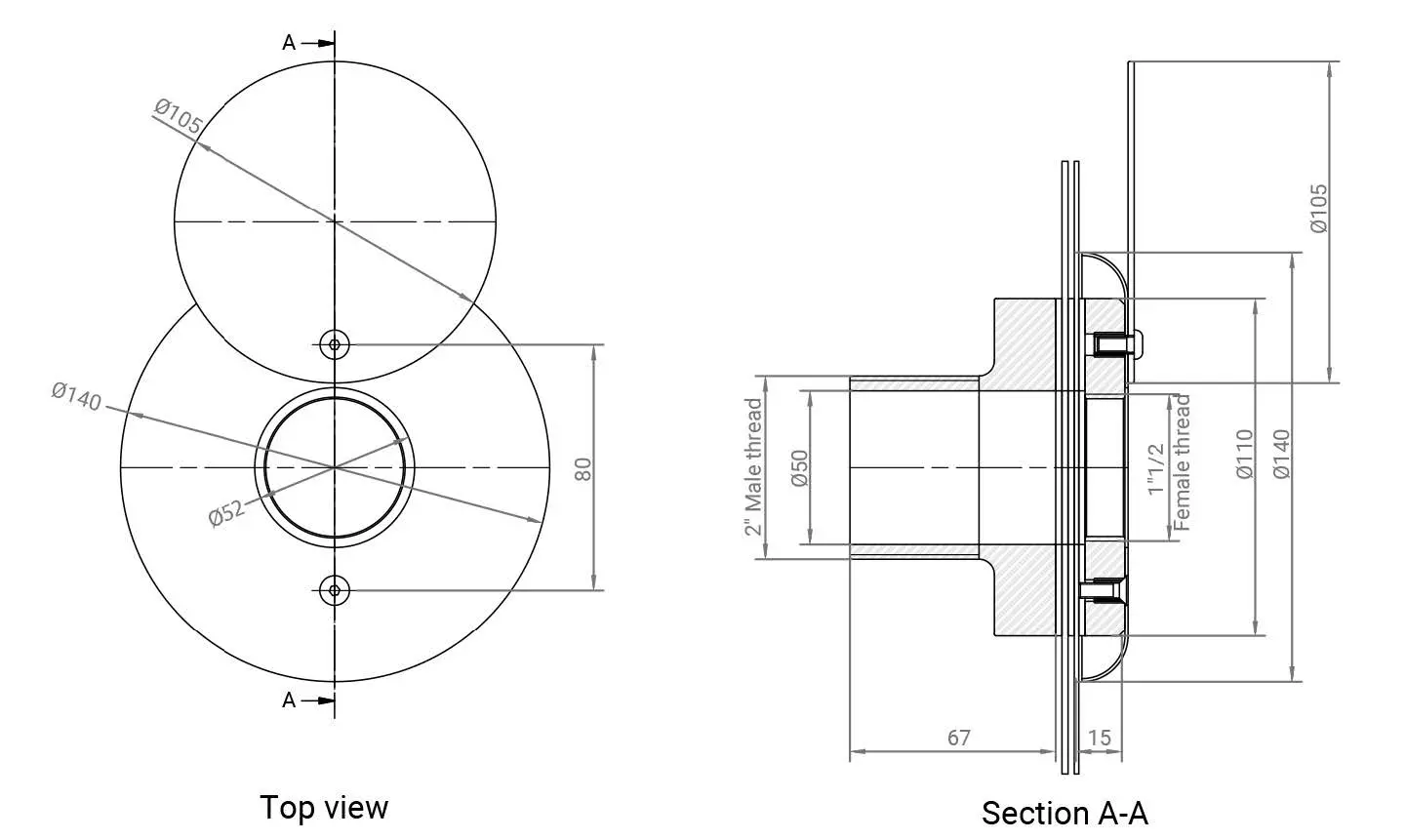

Steel flange external diameter 140 mm.
Download the catalog sheet PDF
TECHNICAL DATA
Vacuum outlet for wall installation for swimming pools.
| Cod. | Diameter (mm) | Connection (inch) | Flow ride (mc/h) |
|---|---|---|---|
| 009121 | Ø 140 | 2" | 12 |
Product compliant with the standards UNI EN 13451-1:2016 | UNI EN 13451-3:2016 | UNI 16713-2:2016
