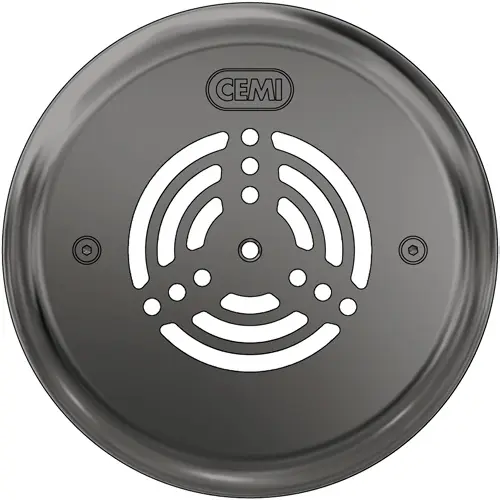

Water return inlet - Wall/Bottom
Return inlet for installation on the wall/bottom for swimming pools with prefabricated/reinforced concrete facility with PVC membrane covering or with waterproofing system and ceramic/ mosaic covering.
It is made of high-strength PVC pressure and wear, AISI 304 stainless steel flange, AISI 304 stainless steel flange cover polished, A2 stainless steel screws.

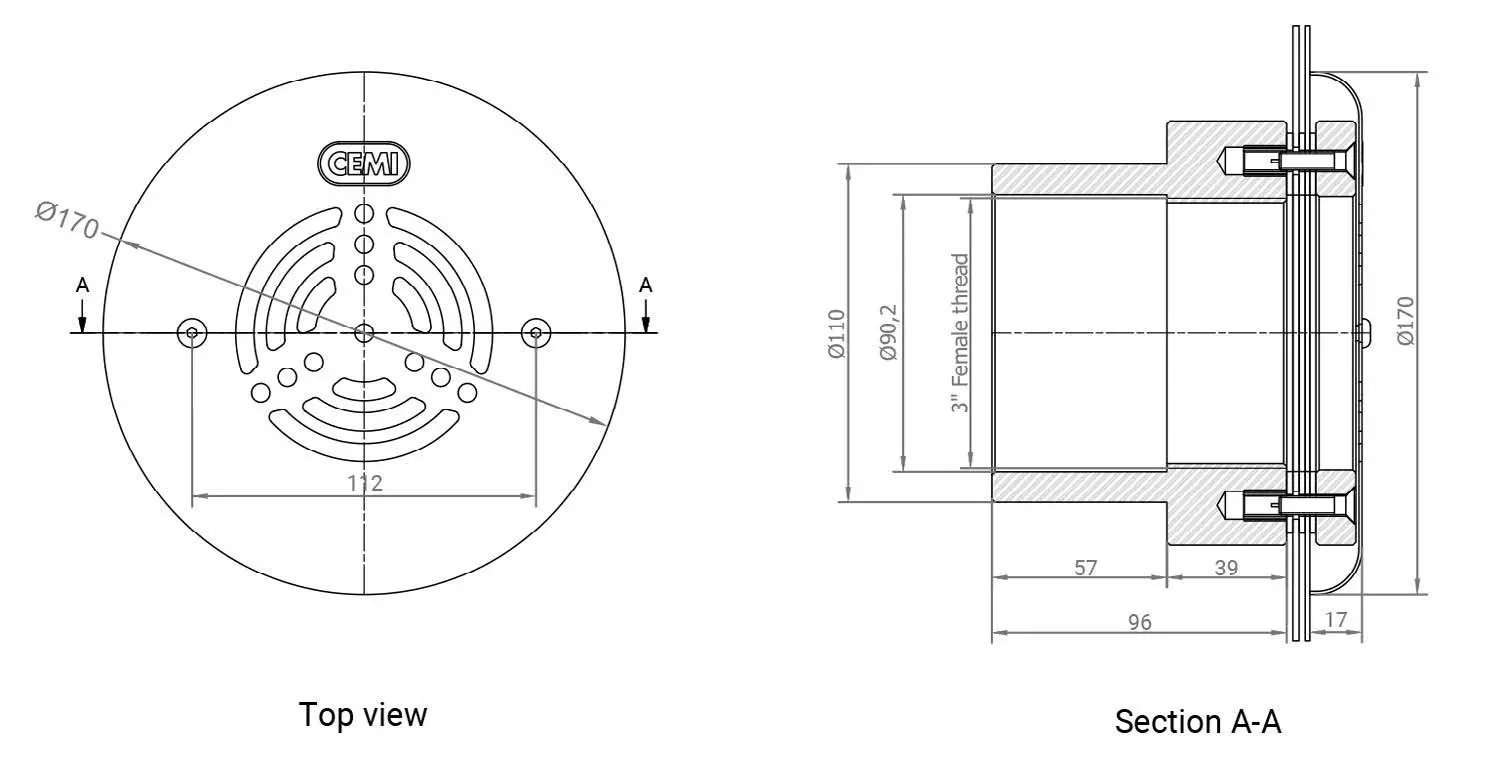

Steel flange 170 mm external diameter.
Download the catalog sheet PDF
TECHNICAL DATA
Return inlet for installation on the wall/bottom for swimming pools.
| Cod. | Diameter (mm) | Connection (inch) | Flow ride (mc/h) |
|---|---|---|---|
| 009410 | Ø 170 | 3" | 18 |
Product compliant with the standards UNI EN 13451-1:2016 | UNI EN 13451-3:2016 | UNI 16713-2:2016
Request technical sheet and/or more information
