Water return inlet - Wall/Bottom

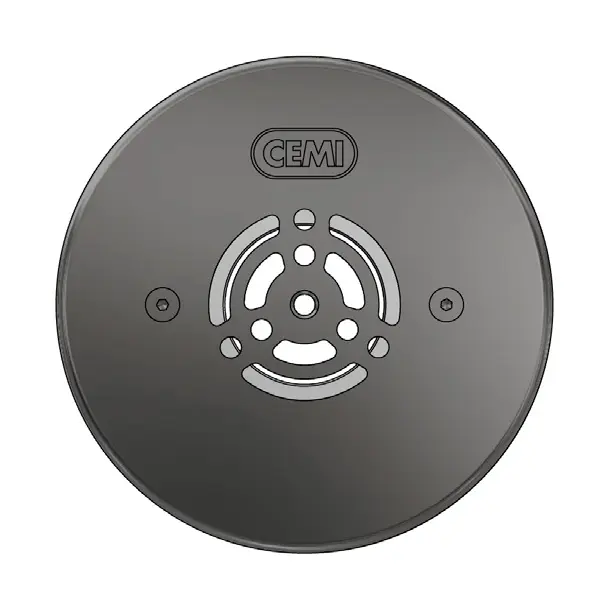

Return inlet for installation on the wall/bottom for swimming pools with concrete facility reinforced or with waterproofing system and ceramic/mosaic covering.
It is made in PVC with high resistance to pressure and wear, AISI 304 stainless steel flange, flange cover in polished AISI 304 stainless steel, A2 stainless steel screws.

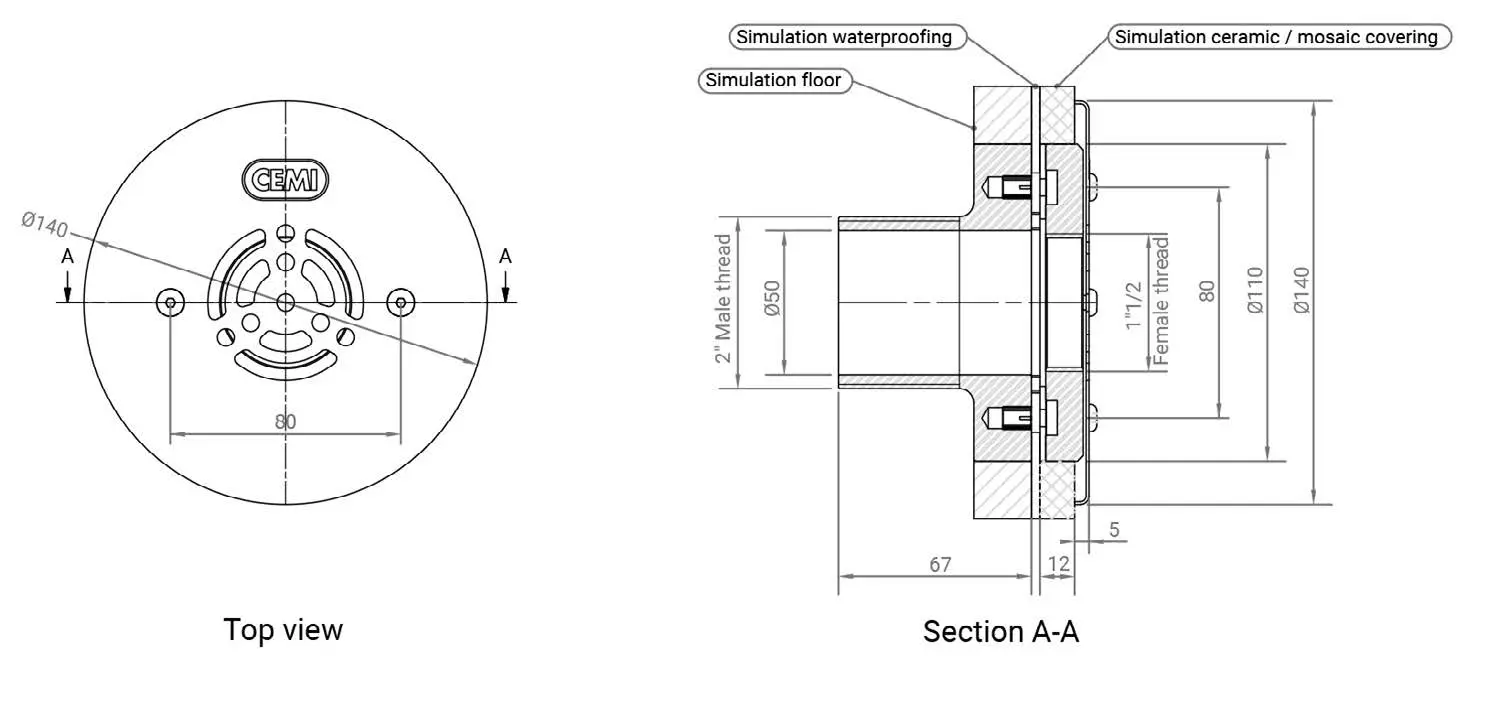

Steel flange external diameter 140 mm.
Download the catalog sheet PDF
TECHNICAL DATA
Return inlet for installation on the wall/bottom for swimming pools.
| Cod. | Diameter (mm) | Connection (inch) | Flow ride (mc/h) |
|---|---|---|---|
| 020376 | Ø 140 | 2" | 8.0 |
Product compliant with the standards UNI EN 13451-1:2016 | UNI EN 13451-3:2016 | UNI 16713-2:2016
Request technical sheet and/or more information
