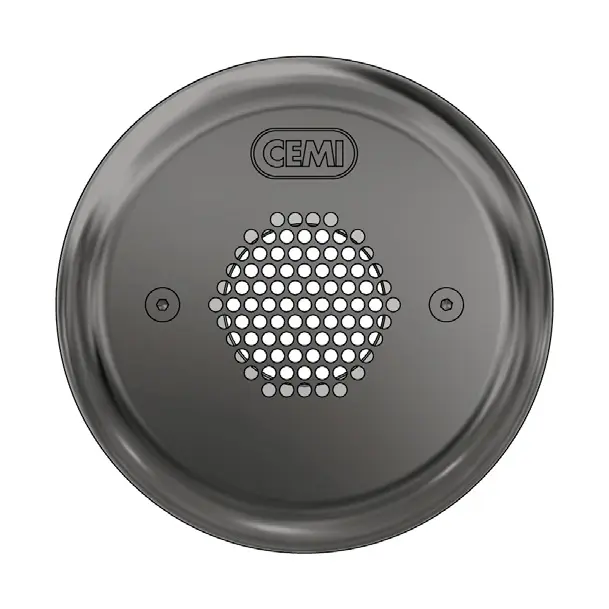

Water return inlet - Bottom
Return inlet for installation on the bottom concrete reinforced with PVC membrane covering or with waterproofing system and ceramic/ mosaic covering.
It is made of high pressure resistant PVC and wear, AISI 304 stainless steel flange, polished AISI 304 stainless steel flange cover, screws in A2 stainless steel.

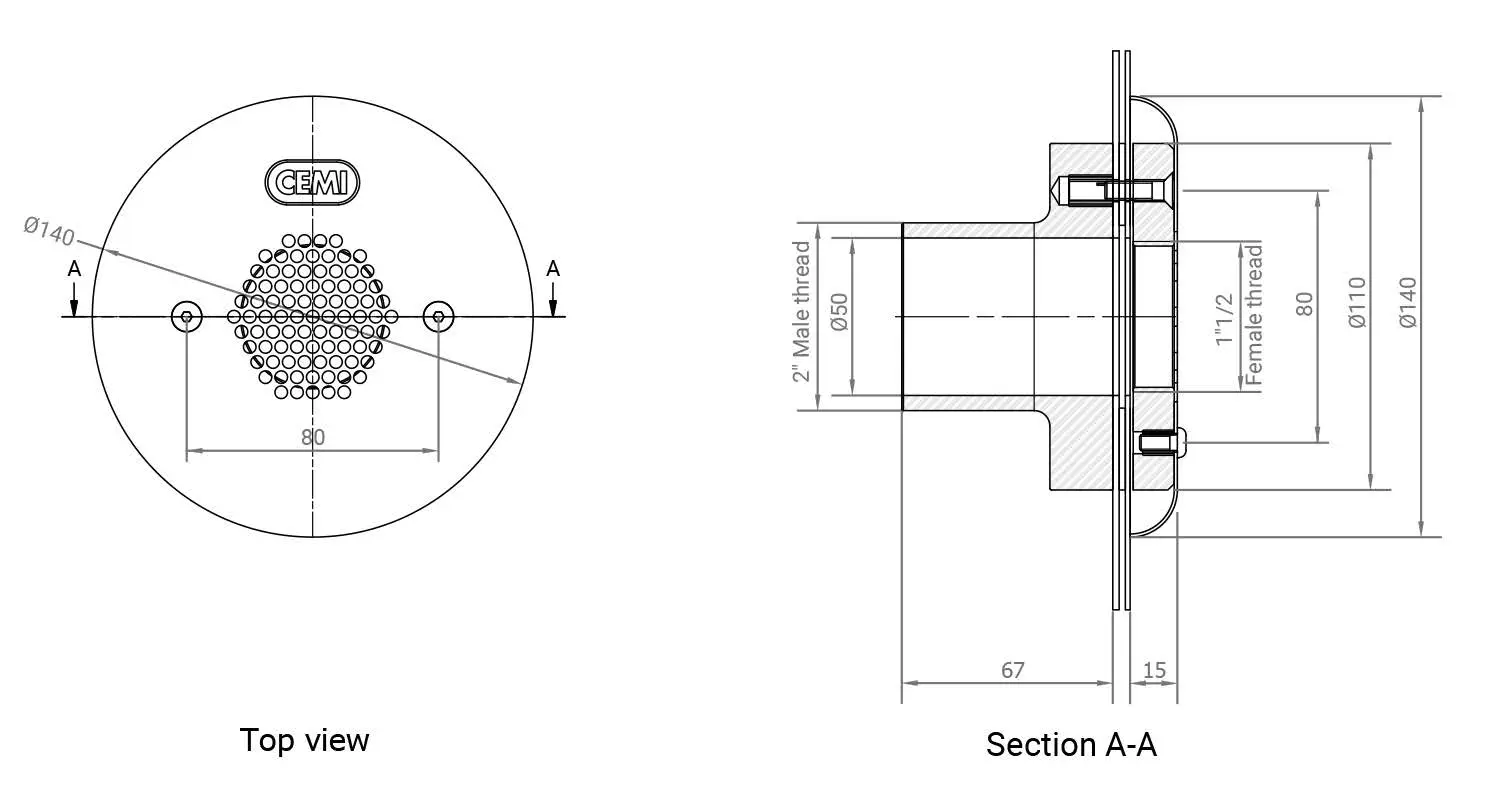

Steel flange external diameter 140 mm.
Download the catalog sheet PDF
TECHNICAL DATA
Return inlet for installation on the bottom concrete.
| Cod. | Diameter (mm) | Connection (inch) | Flow ride (mc/h) |
|---|---|---|---|
| 009838 | Ø 140 | 2" | 8.0 |
Product compliant with the standards UNI EN 13451-1:2016 | UNI EN 13451-3:2016 | UNI 16713-2:2016
