Water return inlet - Wall
Return Inlet for wall installation for swimming pools with prefabricated/ reinforced concrete facility with PVC membrane covering or with waterproofing system and ceramic/mosaic covering.

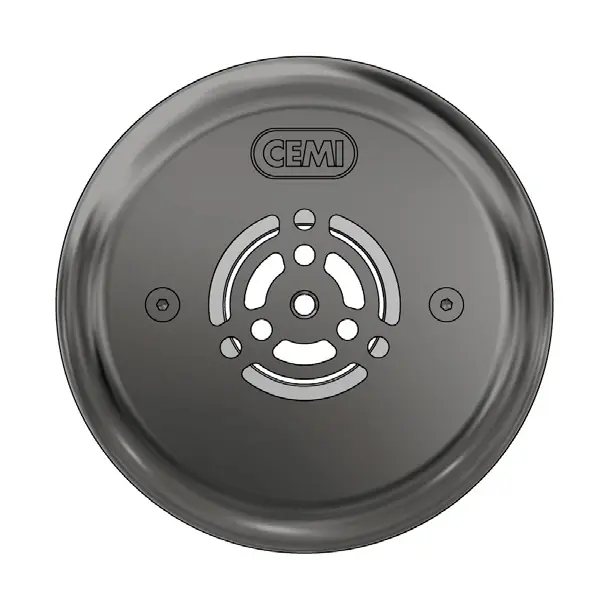

It is made of PVC with high resistance to pressure and wear, AISI 304 stainless steel flange, polished AISI 304 stainless steel flange cover, A2 stainless steel screws.

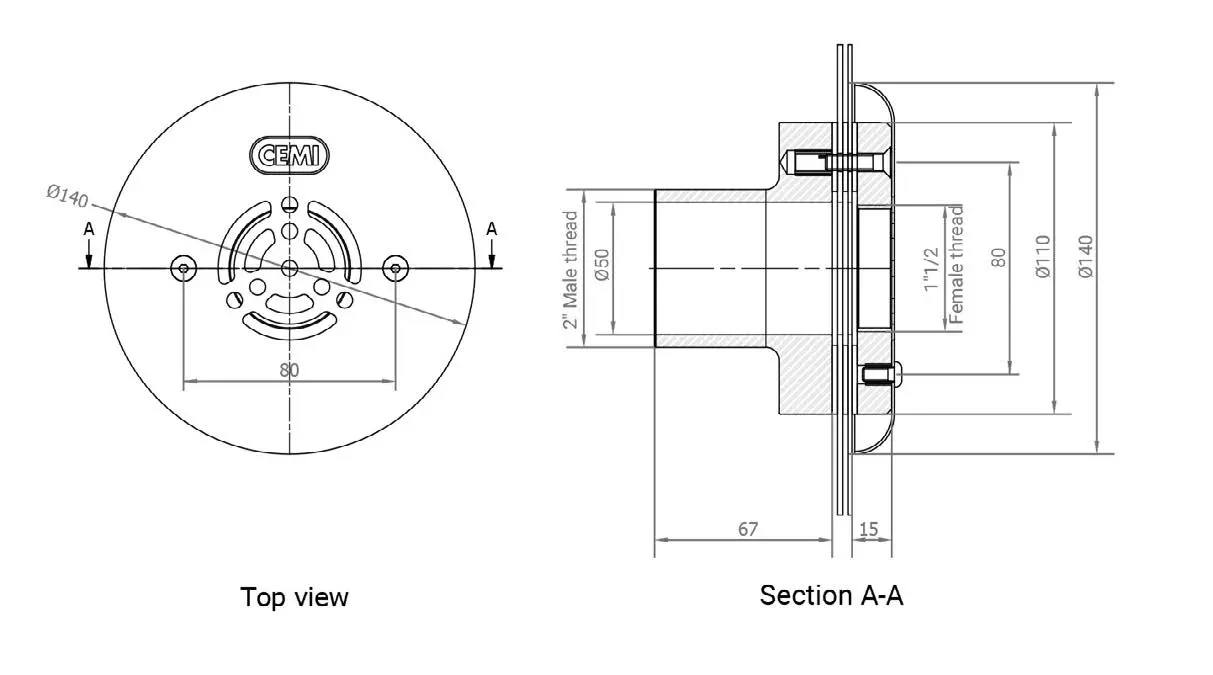

Steel flange external diameter 140 mm.
Download the catalog sheet PDF
TECHNICAL DATA
Return Inlet for wall installation for swimming pools.
| Cod. | Diameter (mm) | Connection (inch) | Flow ride (mc/h) |
|---|---|---|---|
| 009120 | Ø 140 | 2" | 8.0 |
Product compliant with the standards UNI EN 13451-1:2016 | UNI EN 13451-3:2016 | UNI 16713-2:2016
Request technical sheet and/or more information
